AA10VO28DFLR/53R-VSC12H00-S1978 (R902426903)

Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 28 cm3. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, standard. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports, fastening thread metric, laterally opposite, for through drive.
1

BASE UNIT
(110495)

Group »


2

CONTROL VALVE
(13211)

Group »


3

CONTROL VALVE
(150502)

Group »


4

SPLINED COUPLING
(107385)


5

SOCKET HEAD CAP SCREW
(13999)


12

HYDRAULIC GEAR PUMP


20

THROTTLE SCREW
(12384)


21

THROTTLE PIN
(110496)


22

THROTTLE SCREW
(12382)


30

SCREW PLUG
(11873)


40

STOP SCREW
(21165)


43

O-RING
(15835)



Return

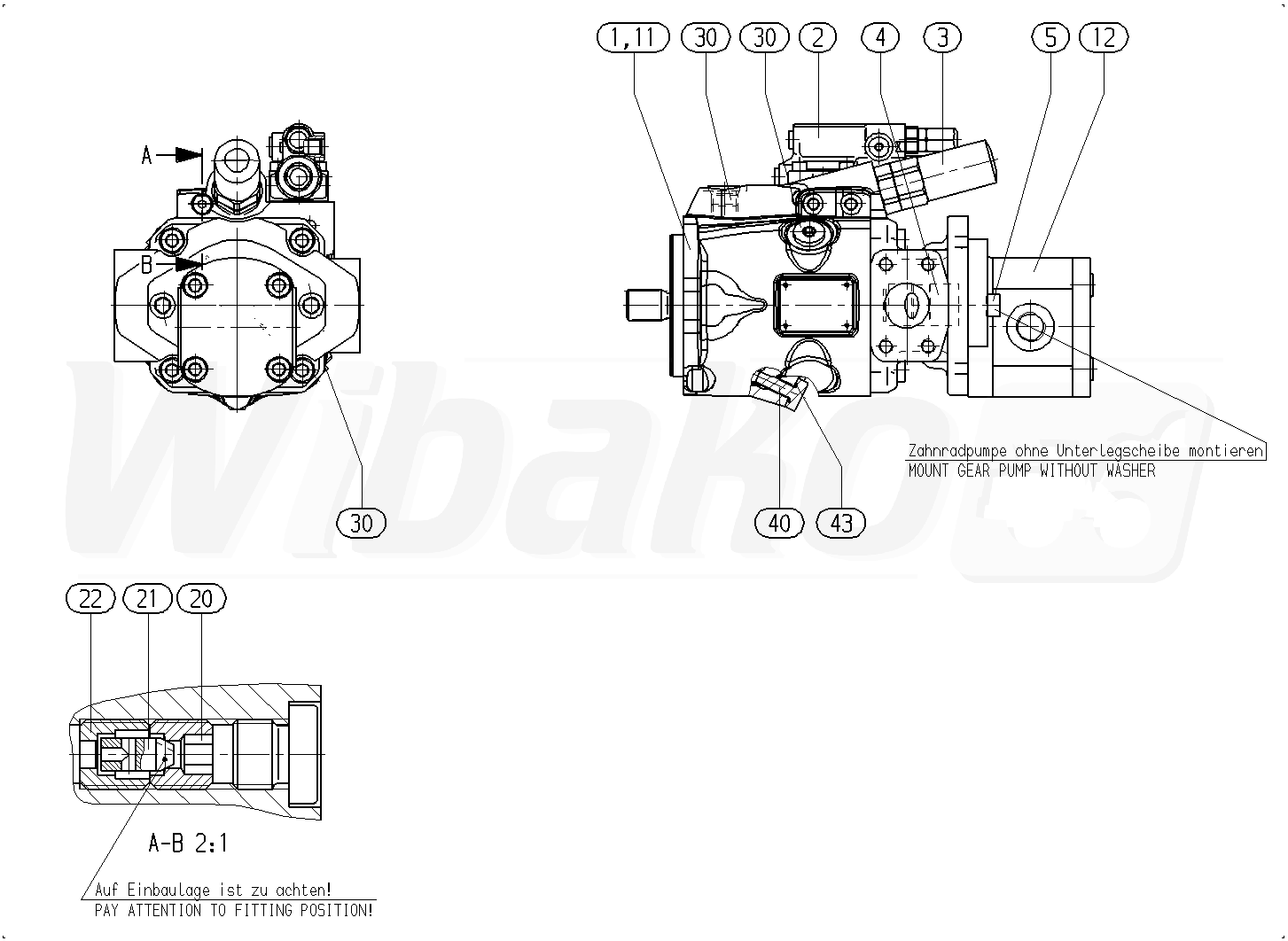

The above diagrams belong to Rexroth www.boschrexroth.com
