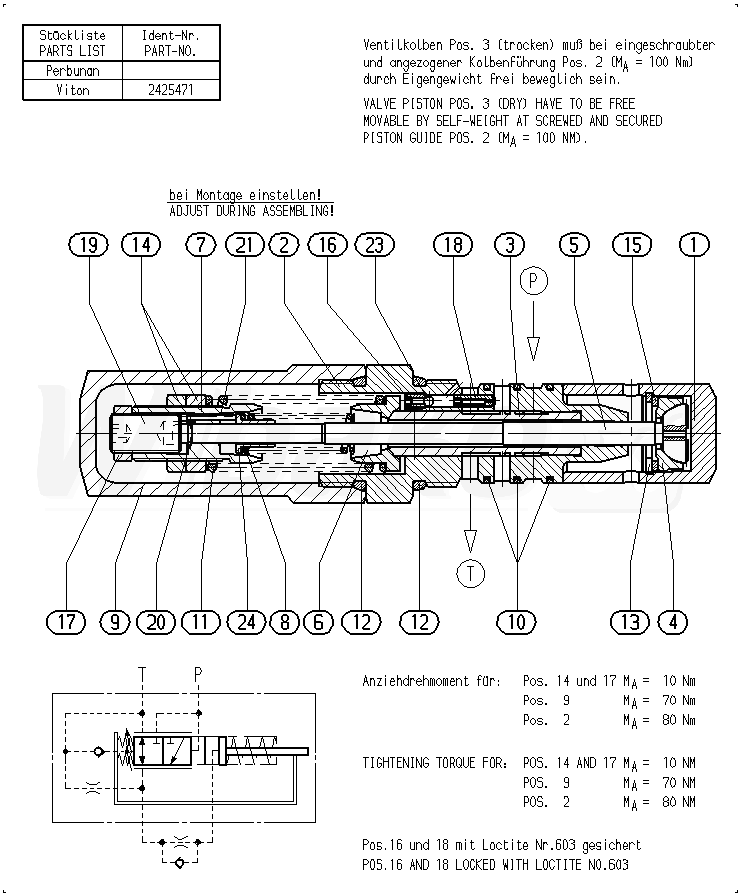

AA10VO28DFLR/53R-VSC12H00-S1978 (R902426903)
CONTROL VALVE (150502)

CONTROL VALVE
(150502)


1

ADJUSTING PISTON
(110481)


2

PISTON GUIDE
(110482)


3

VALVE SPOOL
(110483)


4

SHIM
(108476)


5

PISTON ROD
(110484)


6

SPRING DISK
(108478)


7

ADJUSTING SCREW
(108479)


8

COMPRESSION SPRING
(110485)


9

COVER
(150503)


10

R-RING
(16234)


11

COMPRESSION SPRING
(110487)


12

O-RING
(16233)


13

RETAINING RING
(108484)


14

NUT
(108485)


15

SUPPORTING DISC
(108486)


16

VALVE SEAT
(150504)


17

NUT
(108488)


18

NOZZLE
(110488)


19

SETSCREW
(110489)


20

SNAP RING
(108490)


21

PRESSURE PIN
(108491)


23

BALL
(108493)


24

SLEEVE
(108494)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
