A4VG125EP2D1/32L-XXXXXN001EX-S (R902047591)

Axial piston variable pump A4VG. Geometric displacement 125 cm3. Pressure cut-off. Without DA control valve. Series 3, index 2. Direction of rotation (viewed on drive shaft): counter-clockwise.
1

ROTARY GROUP
(44967)

Group »


2

CONTROL
(15000)

Group »


5

CONTROL MODULE
(45843)

Group »


10

HOUSING
(45896)


13

PIVOT PIN
(11100)


14

POITIONING PIN
(10183)


22

SCREW PLUG
(11370)


31

SLOTTED SPRING PIN
(12971)


32

SCREW PLUG
(10190)


35

SCREW PLUG
(10220)



Return

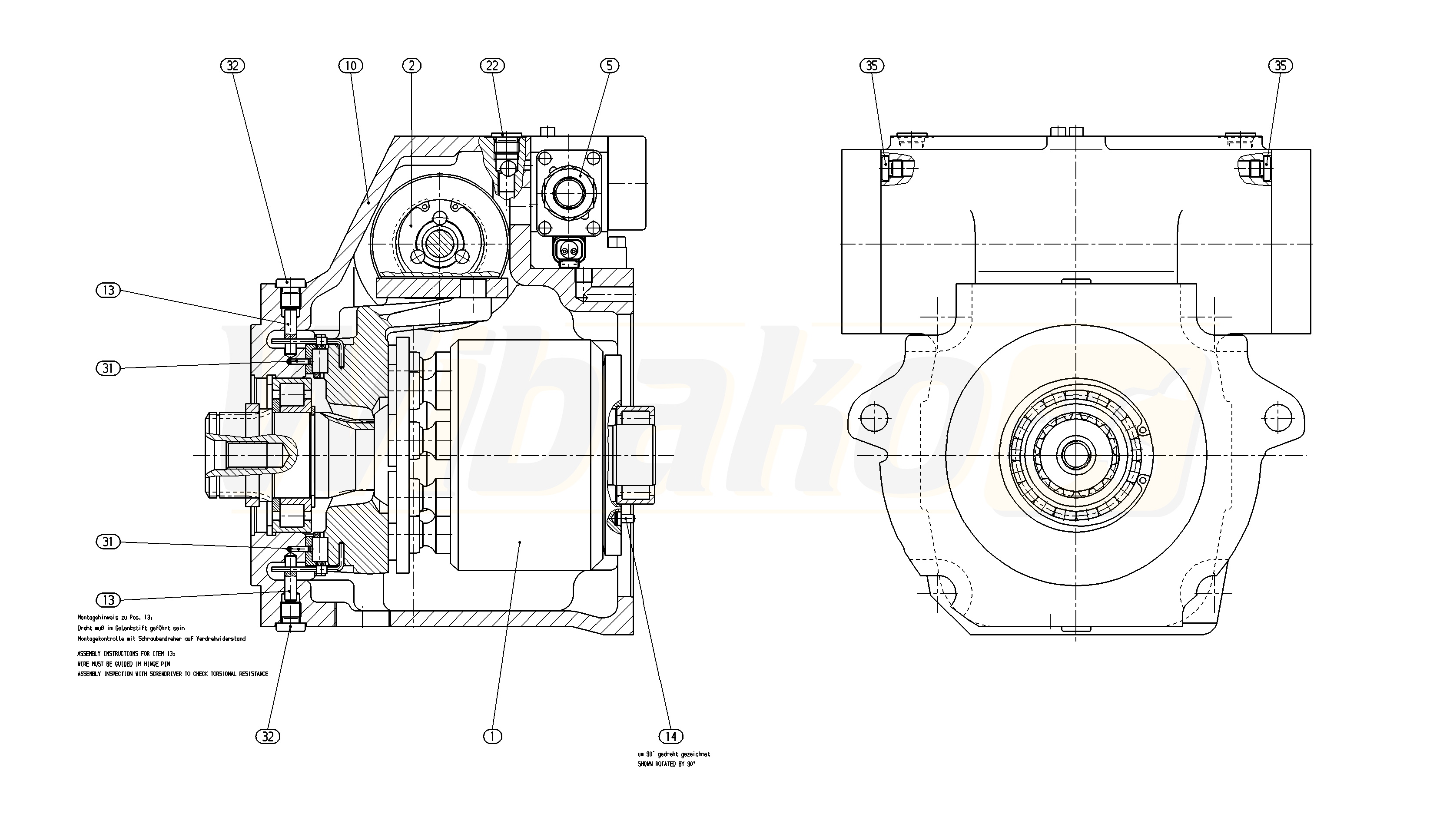

The above diagrams belong to Rexroth www.boschrexroth.com
