A4VG125EP2D1/32L-XXXXXN001EX-S (R902047591)

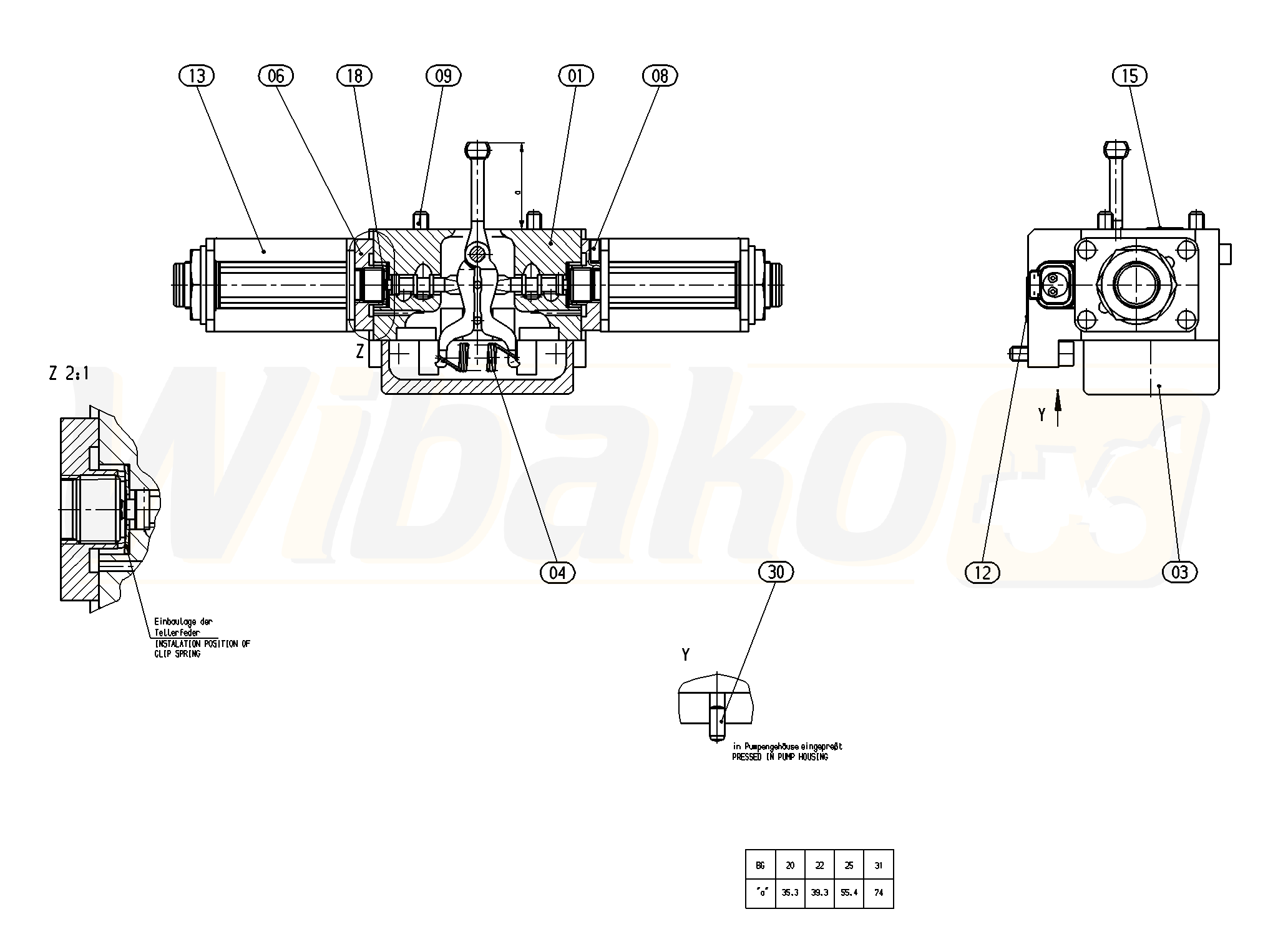

CONTROL MODULE (45843)

CONTROL MODULE
(45843)


1

BASIC UNIT
(45844)

Group »


3

COVER
(13413)


4

EXTENSION SPRING
(13414)


6

LOCATION PIECE
(45893)


8

SOCKET HEAD CAP SCREW
(12810)


9

SOCKET HEAD CAP SCREW
(12219)


12

O-RING
(15512)


13

PROPORTIONAL SOLENOID
(45894)


15

O-RING
(10450)


18

DISC SPRING
(26825)


30

STRAIGHT PIN
(12694)



Return
