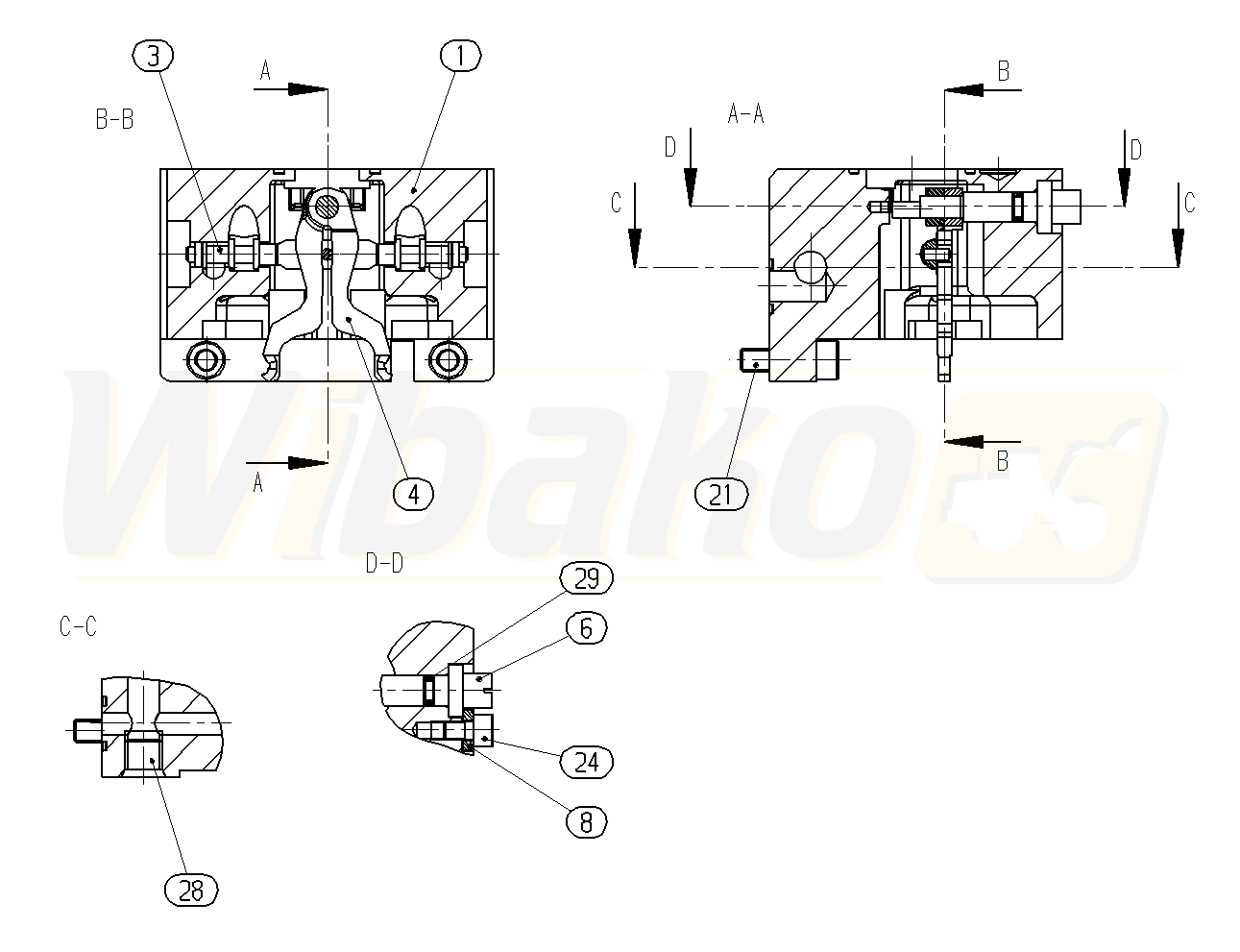

A4VG125EP2D1/32L-XXXXXN001EX-S (R902047591)
CONTROL HOUSING (45845)

CONTROL HOUSING
(45845)


1

HOUSING
(45895)


3

CONTROL PISTON
(32602)


4

LEVER PAIR
(13407)


6

ECCENTRIC PIN
(13408)


8

WASHER
(13410)


21

SOCKET HEAD CAP SCREW
(10506)


24

SOCKET HEAD CAP SCREW
(13425)


28

DOUBLE BREAK-OFF PLUG
(19010)


29

O-RING
(13429)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
