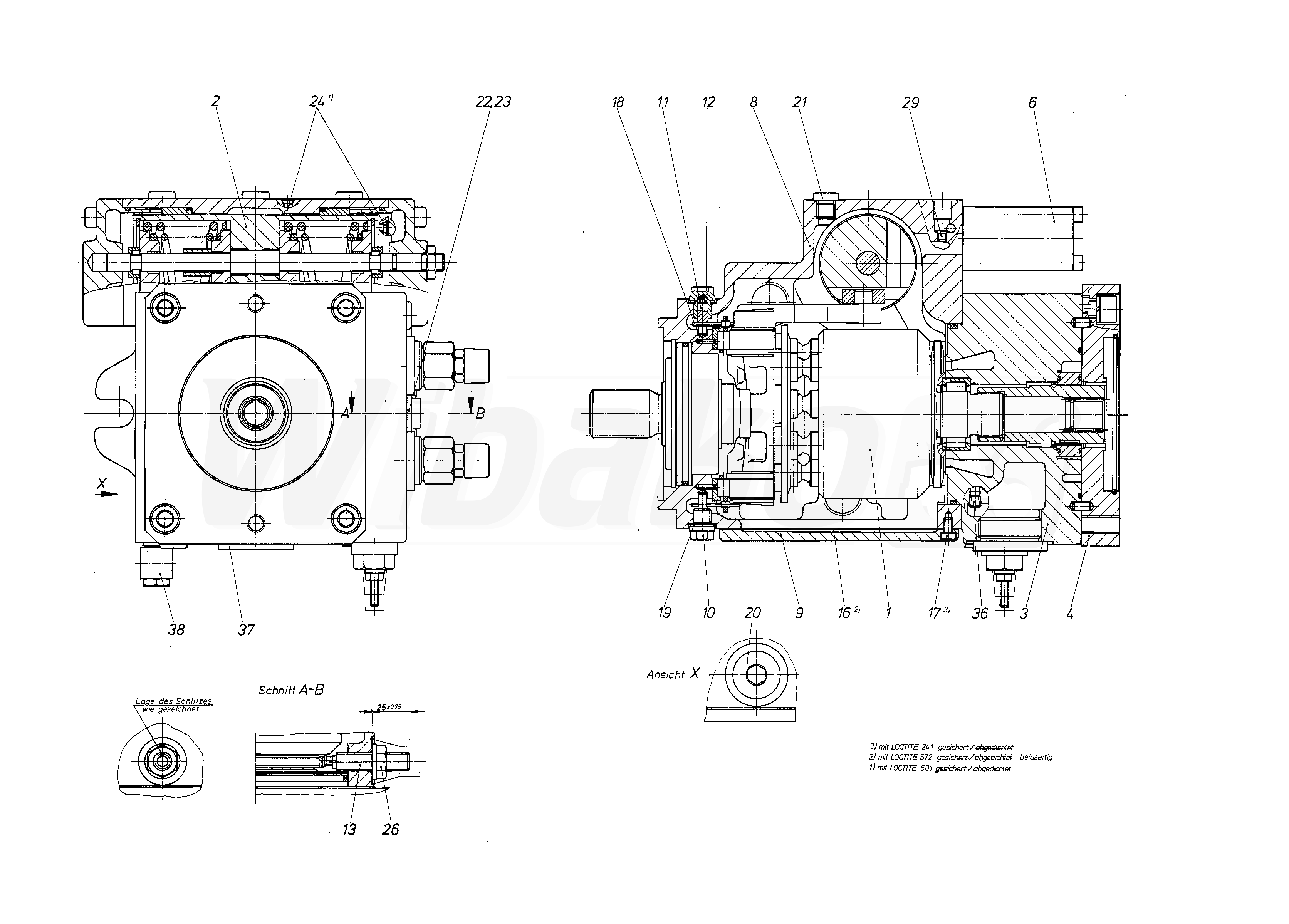

A4VG71NV1/30L (R909427280)

1

ROTARY GROUP
(14866)

Group »


2

CONTROL


3

CONNECTION PLATE
(14867)

Group »


4

BELL HOUSING


6

COVER
(14868)

Group »


8

HOUSING
(14869)


9

HOUSING COVER
(14870)


10

SCREW PLUG
(12270)


11

PIVOT PIN
(12271)


13

ECCENTRIC SCREW
(10709)


16

SEAL
(14871)


17

SOCKET HEAD CAP SCREW
(10975)


18

SLOTTED SPRING PIN
(10396)


19

SEAL RING
(12274)


20

SCREW PLUG
(10394)


21

SCREW PLUG
(10190)


22

SCREW PLUG
(12195)


23

O-RING
(10534)


24

DOUBLE BREAK-OFF PLUG


26

SEALING NUT
(10399)


29

NOZZLE
(10711)


36

SCREW PLUG
(11753)


37

SCREW PLUG
(12981)


38

THREADED FASTENER
(10713)


98

SEAL KIT
(14872)
