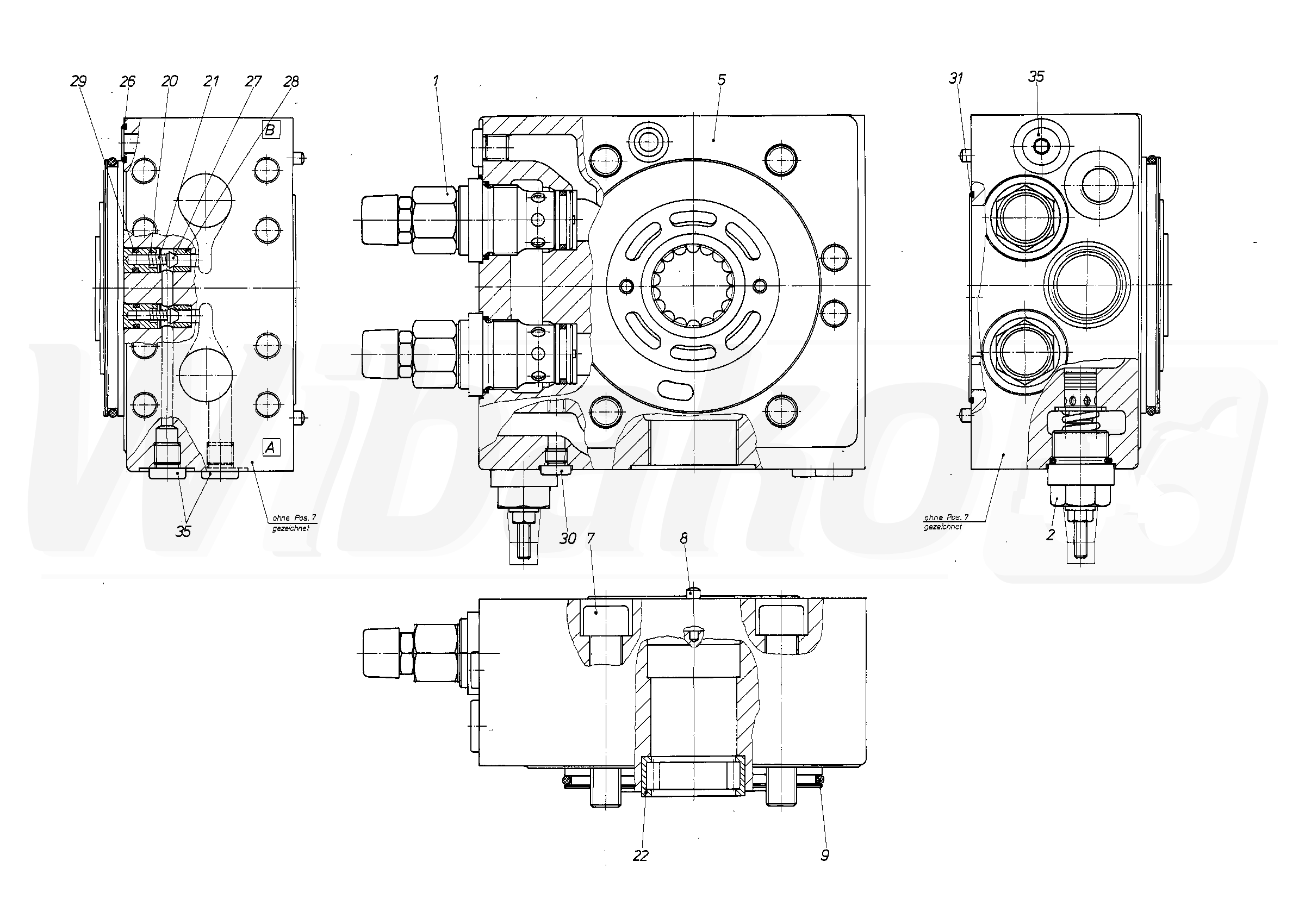

A4VG71NV1/30L (R909427280)
CONNECTION PLATE (14867)

CONNECTION PLATE
(14867)


1

DELIVERY-VALVE ASSEMBLY
(10452)

Group »


2

PRESSURE RELIEF VALVE


5

CONNECTION PLATE
(14899)


7

SOCKET HEAD CAP SCREW
(10868)


8

STRAIGHT PIN
(14900)


9

O-RING
(11006)


20

SPRING SLEEV
(14901)


21

COMPRESSION SPRING
(13038)


22

CYL. ROLLER BEARING
(14902)


26

O-RING
(14903)


27

VALVE CONE
(13041)


28

VALVE SEAT
(13042)


29

O-RING
(10188)


30

SCREW PLUG
(10220)


31

O-RING


35

SCREW PLUG
(10190)
