A4VG125EP11/30L-PZC10F001S*G* (R909424167)

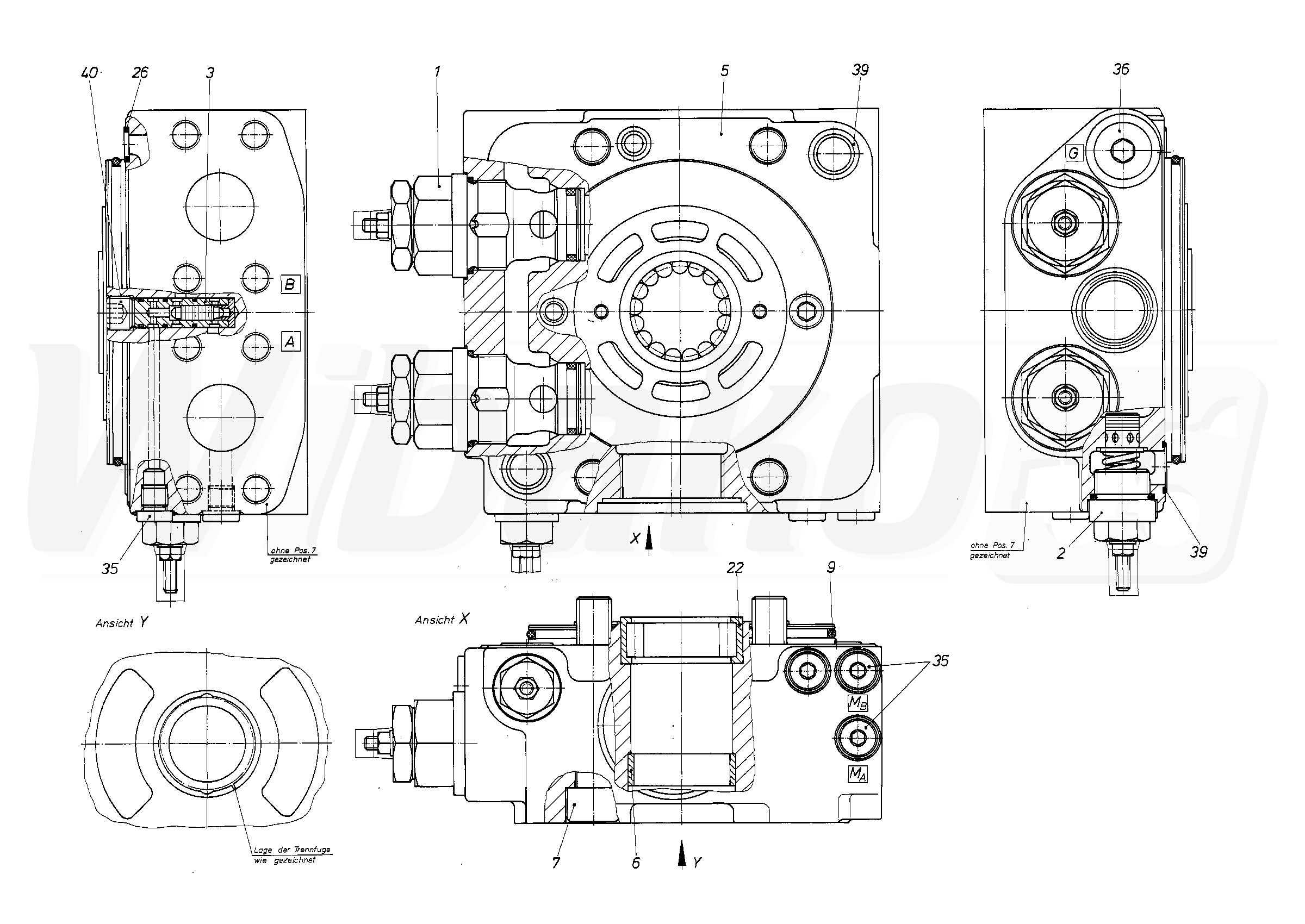

CONNECTION PLATE (53215)

CONNECTION PLATE
(53215)


1

PRESSURE RELIEF VALVE
(53216)

Group »


2

PRESSURE RELIEF VALVE
(53217)

Group »


3

SHUTTLE VALVE
(23534)

Group »


5

CONNECTION PLATE
(53882)


6

BUSHING
(53883)


7

SOCKET HEAD CAP SCREW
(11052)


9

O-RING
(12631)


22

CYL. ROLLER BEARING
(13354)


26

QUAD RING
(11798)


35

SCREW PLUG
(10190)


36

SCREW PLUG
(10397)


39

O-RING
(27724)


40

SETSCREW
(53884)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
