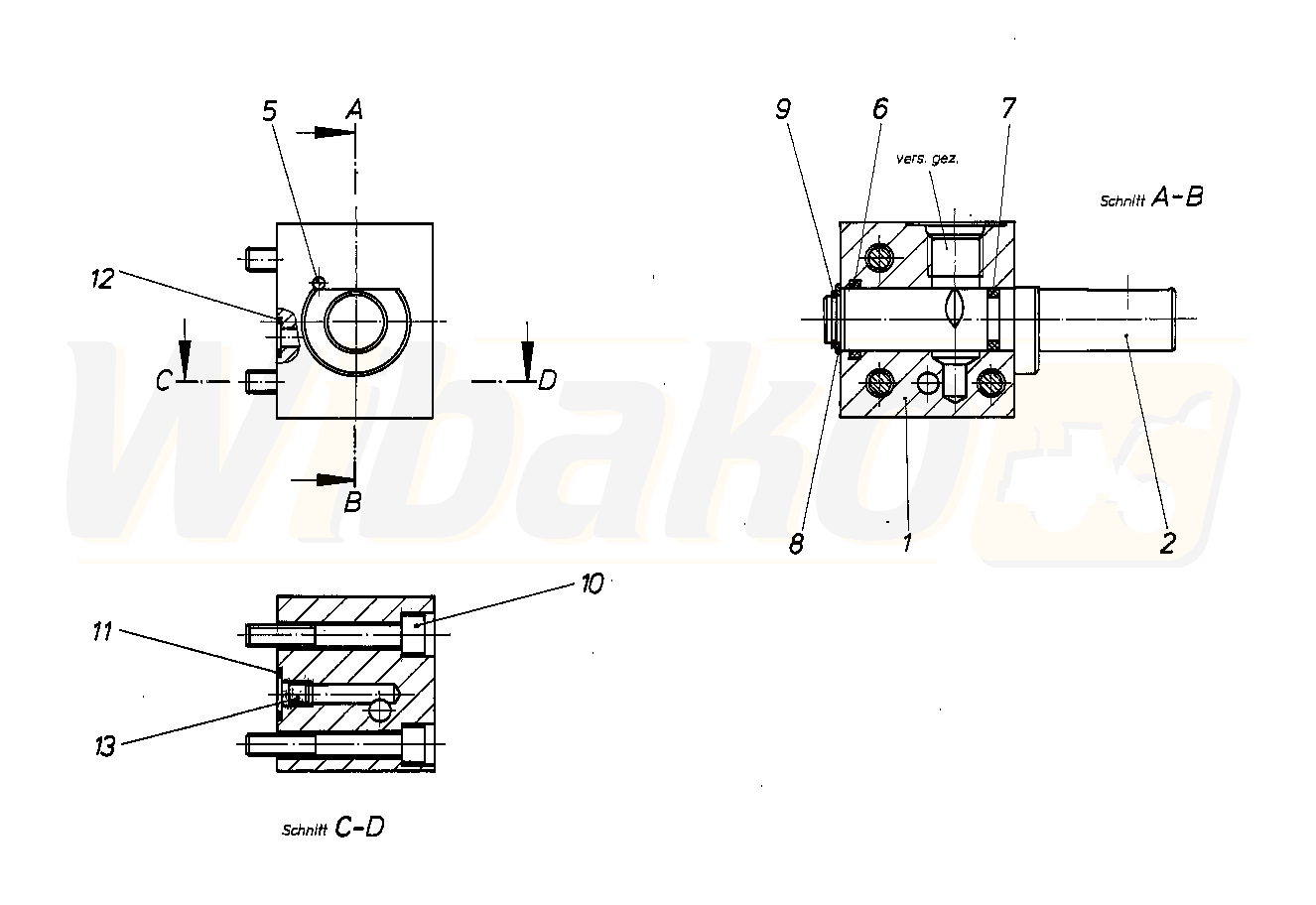

AA4VG125HD/3-424486**G* (R909424486)
ROTARY ORIFICE (53228)

ROTARY ORIFICE
(53228)


1

HOUSING
(53932)


2

SHAFT
(53933)


5

HALF LENGTH TPR GRVD DOWEL PIN
(10238)


6

O-RING
(11818)


7

O-RING
(10226)


8

SHIM RING
(16253)


9

RETAINING RING
(12228)


10

SOCKET HEAD CAP SCREW
(14633)


11

O-RING
(10227)


12

O-RING
(10370)


13

NOZZLE
(10221)
