AA4VG125HD1/30L-427505*G* (R909427505)

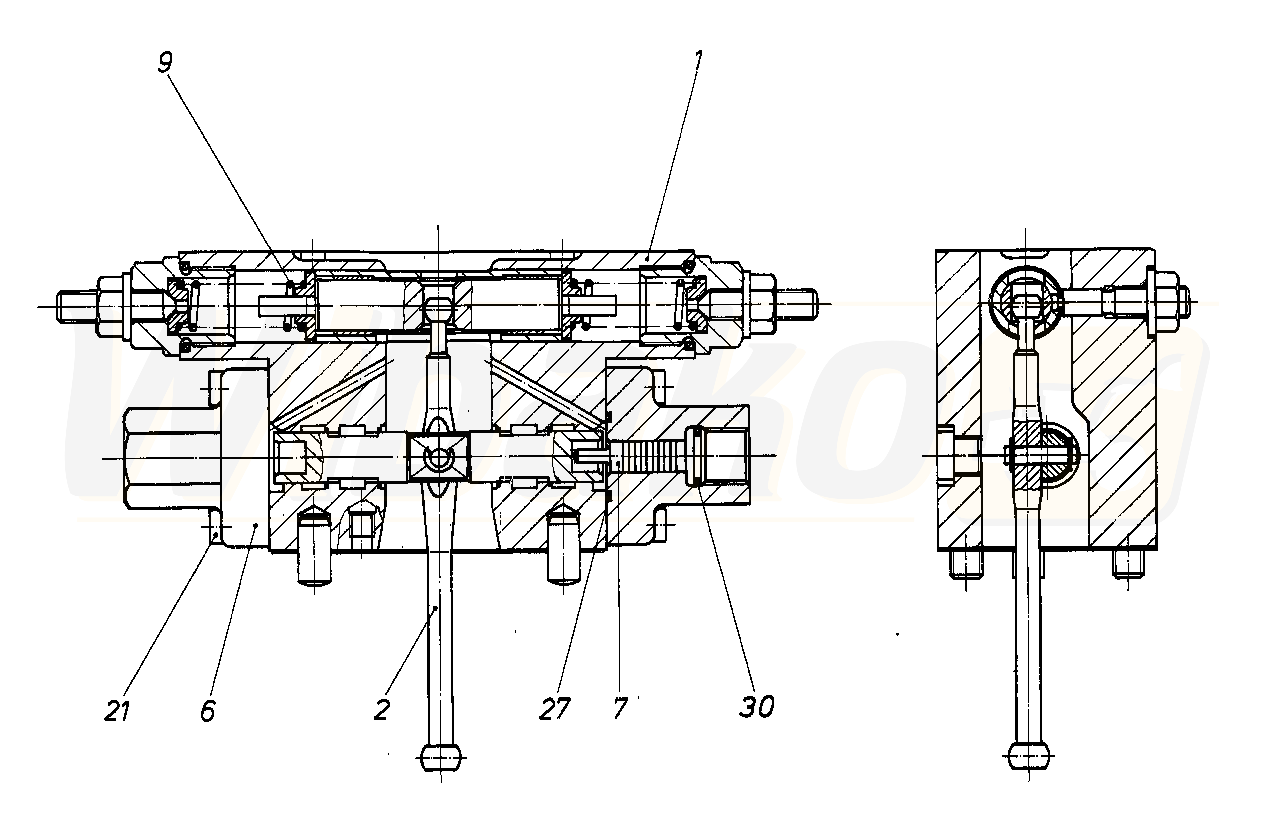

CONTROL MODULE (53242)

CONTROL MODULE
(53242)


1

CONTROL MODULE
(53229)

Group »


2

FEEDBACK LEVER
(53923)


6

HOUSING
(53955)


7

PISTON
(53956)


9

COMPRESSION SPRING
(53957)


21

SOCKET HEAD CAP SCREW
(23319)


27

O-RING
(12696)


30

SNAP RING
(19549)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
