AA4VG125HD/30R-433411*G* (R909433411)

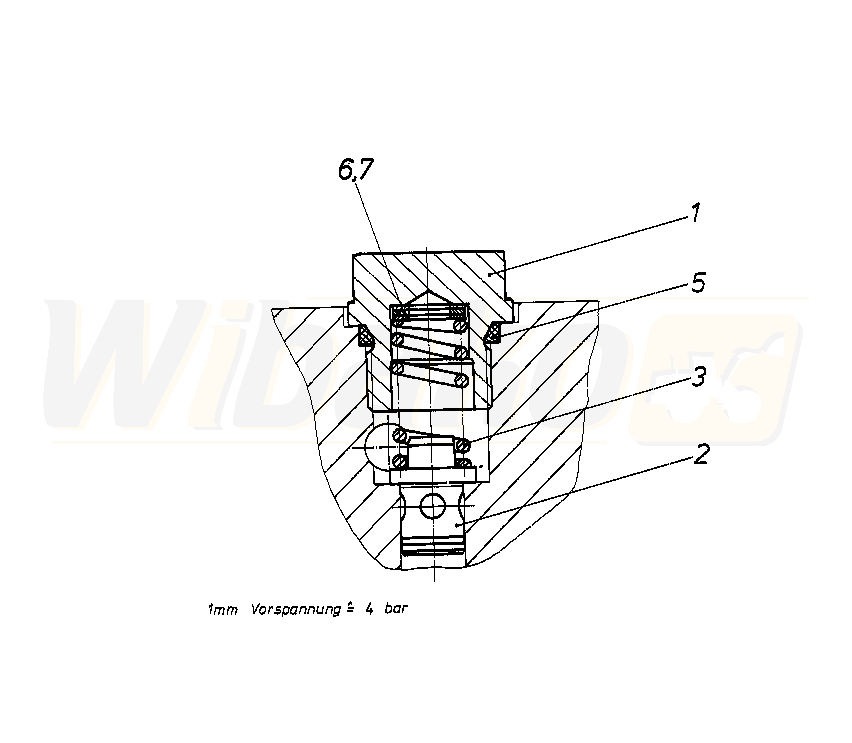

PRESSURE RELIEF VALVE (53248)

PRESSURE RELIEF VALVE
(53248)


1

SCREW PLUG
(53977)


2

VALVE SPOOL
(53978)


3

COMPRESSION SPRING
(53979)


5

O-RING
(11092)


6

SHIM RING
(13832)


7

SHIM RING
(16854)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
