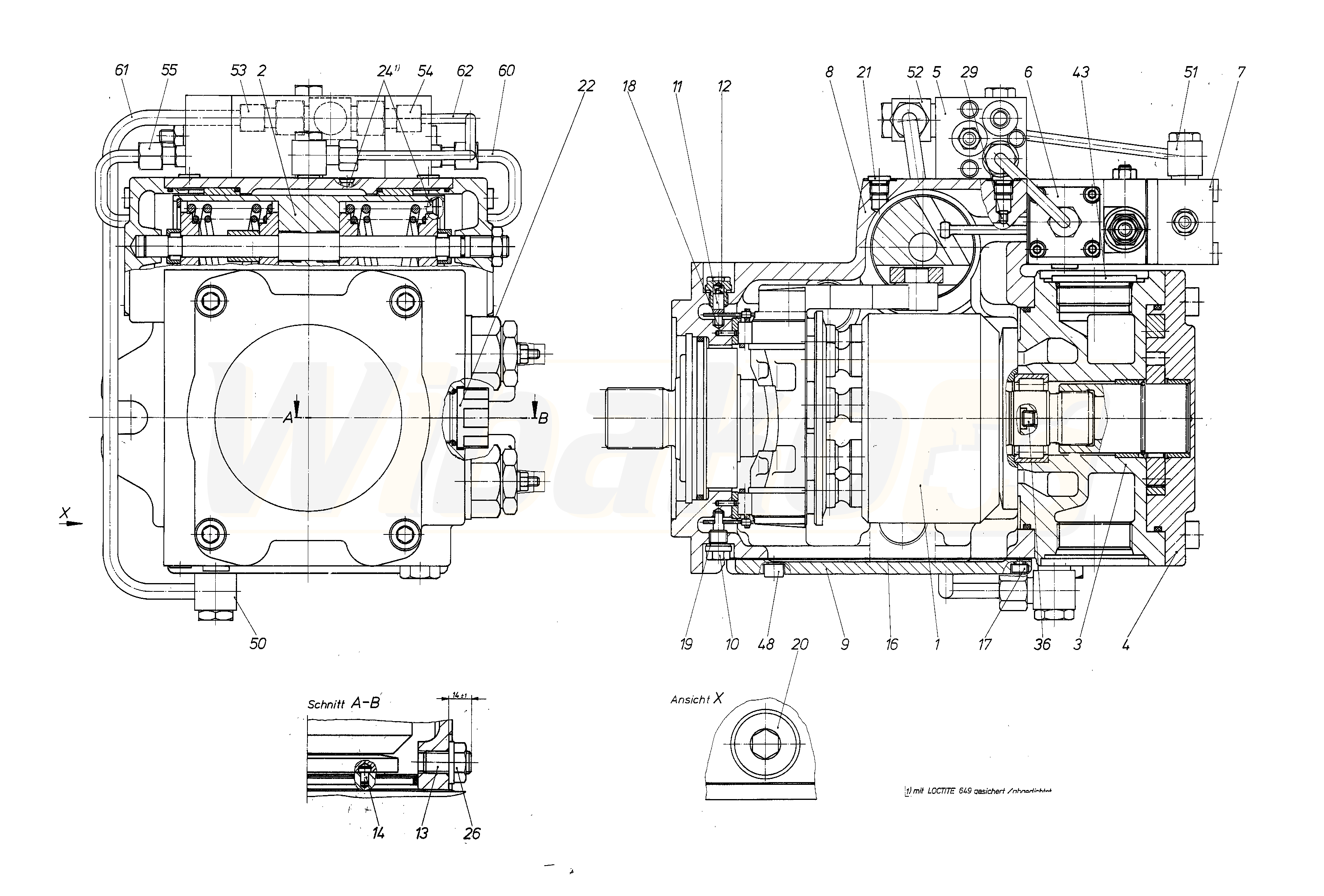

AA4VG125HD/30R-433411*G* (R909433411)

1

ROTARY GROUP
(53220)

Group »


2

CONTROL
(53214)

Group »


3

CONNECTION PLATE
(53246)

Group »


4

INTERNAL GEAR PUMP
(53218)

Group »


5

SEQUENCE VALVE
(53247)

Group »


6

CONTROL MODULE
(53249)

Group »


7

SENSING DEVICE
(53251)

Group »


8

HOUSING
(53960)


9

HOUSING COVER
(53860)


10

SCREW PLUG
(12270)


11

PIVOT PIN
(29532)


12

COMPRESSION SPRING
(29533)


13

SETSCREW
(26369)


14

POITIONING PIN
(10183)


16

SEAL
(53861)


17

SOCKET HEAD CAP SCREW
(11185)


18

SLOTTED SPRING PIN
(12971)


19

SEAL RING
(12274)


20

SCREW PLUG
(19251)


21

SCREW PLUG
(11371)


22

LOCKING PIECE
(53232)

Group »


24

DOUBLE BREAK-OFF PLUG
(19009)


26

SEALING NUT
(12984)


29

NOZZLE
(10073)


36

SCREW PLUG
(53862)


43

SCREW PLUG
(20356)


48

SOCKET HEAD CAP SCREW
(10430)


50

THREADED FASTENER
(10342)

Group »


51

THREADED FASTENER
(14980)

Group »


52

THREADED FASTENER
(53961)


53

THREADED FASTENER
(53962)


54

THREADED FASTENER
(53963)


55

THREADED FASTENER
(52263)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
