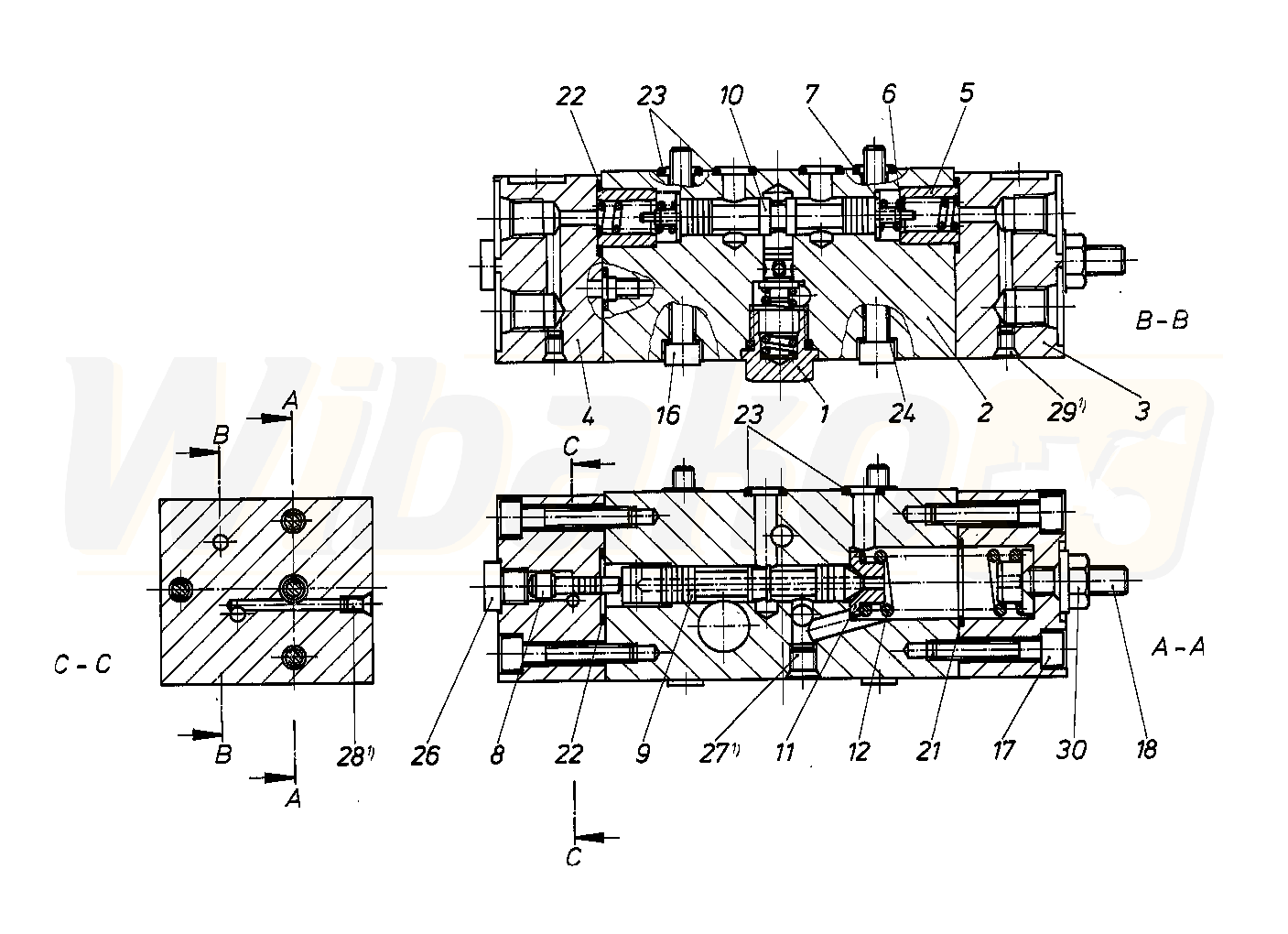

AA4VG125HD/30R-433411*G* (R909433411)
SEQUENCE VALVE (53247)

SEQUENCE VALVE
(53247)


1

PRESSURE RELIEF VALVE
(53248)

Group »


2

VALVE HOUSING
(53967)


3

CONNECTION PLATE
(53968)


4

CONNECTION PLATE
(53969)


5

STOP BUSHING
(53970)


6

COMPRESSION SPRING
(53971)


7

SPRING DISK
(10495)


8

MEASURING PISTON
(53972)


9

CONTROL PISTON
(53973)


10

COMMAND PISTON
(53974)


11

SPRING DISK
(53975)


12

COMPRESSION SPRING
(53976)


16

SOCKET HEAD CAP SCREW
(11241)


17

SOCKET HEAD CAP SCREW
(11717)


18

SETSCREW
(53944)


21

O-RING
(10509)


22

O-RING
(10247)


23

O-RING
(11087)


24

SEAL RING
(12275)


26

SCREW PLUG
(10220)


27

DOUBLE BREAK-OFF PLUG
(19009)


28

DOUBLE BREAK-OFF PLUG
(26562)


29

DOUBLE BREAK-OFF PLUG
(19008)


30

SEALING NUT
(10215)
