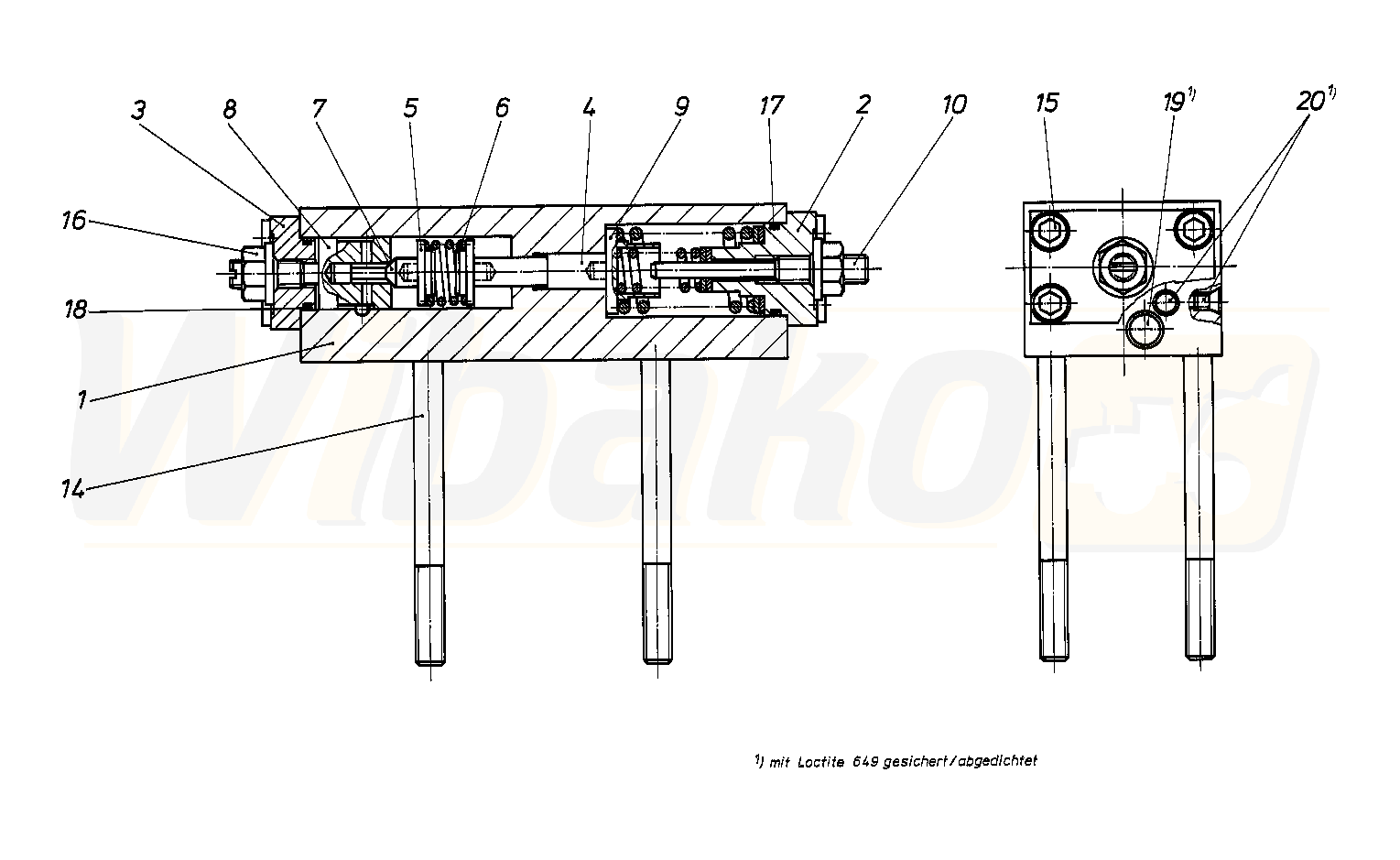

AA4VG125HD/30R-433411*G* (R909433411)
SENSING DEVICE (53251)

SENSING DEVICE
(53251)


1

VALVE HOUSING
(53985)


2

SPRING COVER
(53986)


3

COVER
(53987)


4

DIFFERENTIAL PISTON
(53988)


5

SPRING DISK
(53989)


6

COMPRESSION SPRING
(53990)


7

VALVE SPOOL
(53991)


8

VALVE SEAT
(53992)


9

SPRING DISK
(53993)


10

SETSCREW
(53994)


14

SOCKET HEAD CAP SCREW
(53931)


15

SOCKET HEAD CAP SCREW
(10975)


16

SEALING NUT
(10215)


17

O-RING
(31850)


18

O-RING
(10247)


19

DOUBLE BREAK-OFF PLUG
(19009)


20

DOUBLE BREAK-OFF PLUG
(19008)


22

O-RING
(10247)
