AA4VG125HD/30R-433411*G* (R909433411)

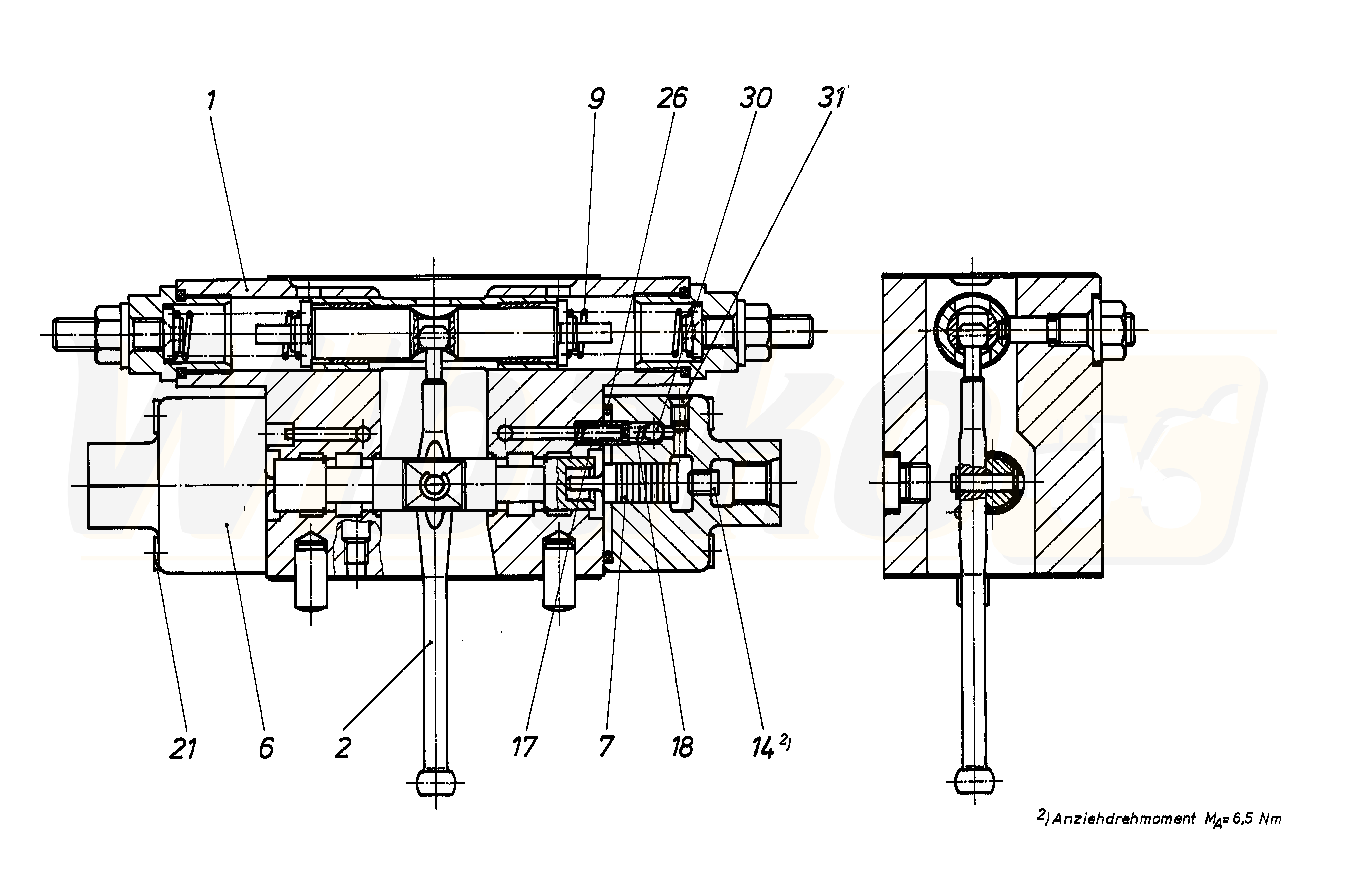

CONTROL MODULE (53249)

CONTROL MODULE
(53249)


1

CONTROL MODULE
(53250)

Group »


2

FEEDBACK LEVER
(53923)


6

HOUSING
(53980)


7

PISTON
(53956)


9

COMPRESSION SPRING
(53957)


14

NOZZLE
(10619)


17

BUSHING
(53981)


18

COMPRESSION SPRING
(53982)


21

SOCKET HEAD CAP SCREW
(11438)


26

O-RING
(11969)


30

BALL
(11069)


31

DOUBLE BREAK-OFF PLUG
(19008)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
