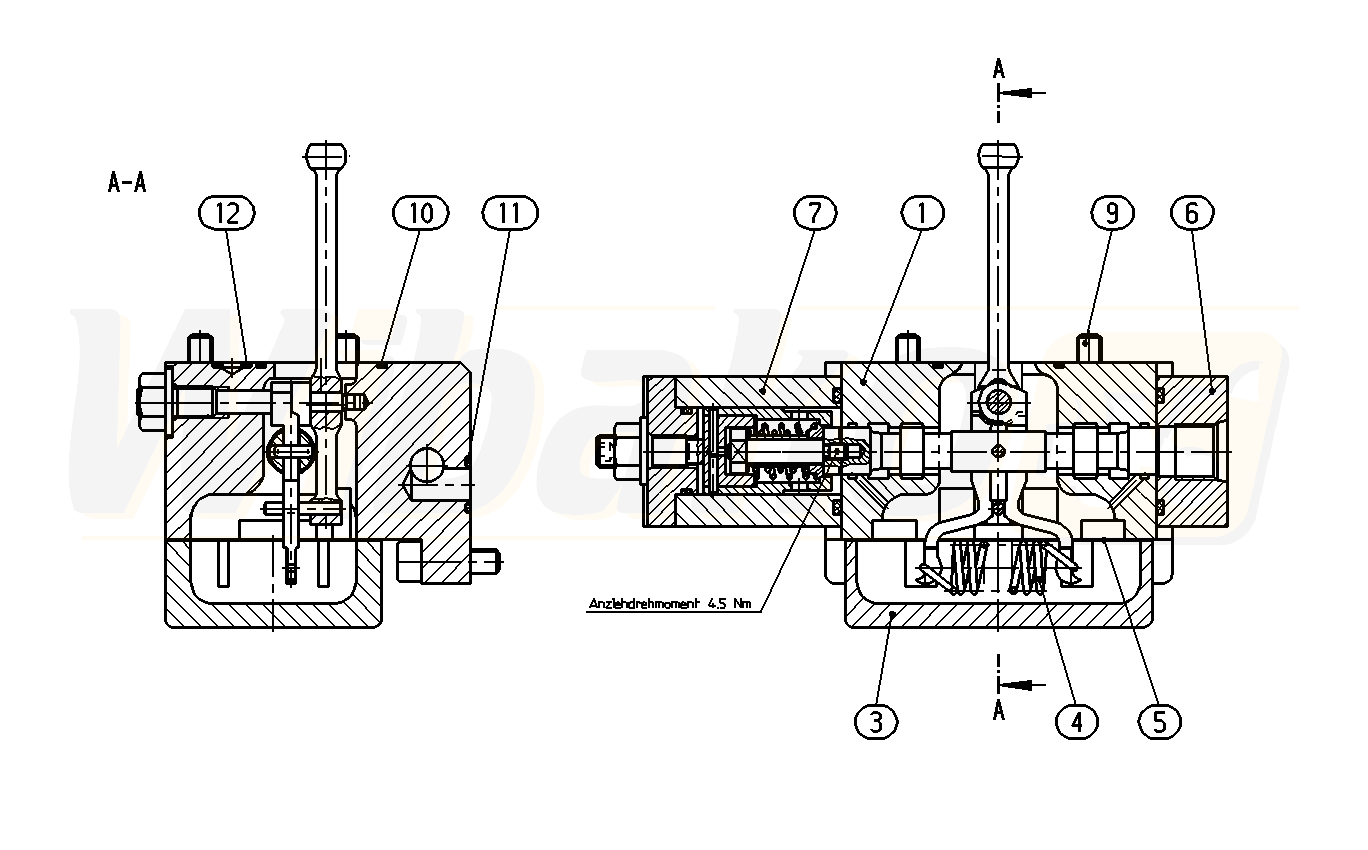

AA4VG90HDD1/32L-NXFXXF001D-S (R909608180)
CONTROL MODULE (64049)

CONTROL MODULE
(64049)


1

CONTROL MODULE
(64050)

Group »


3

COVER
(13413)


4

EXTENSION SPRING
(51290)


5

SEAL
(13412)


6

CONTROL MODULE ASSEMBLY
(50925)

Group »


7

CONTROL MODULE ASSEMBLY
(50926)

Group »


9

SOCKET HEAD CAP SCREW
(12219)


10

O-RING
(10508)


11

O-RING
(10512)


12

O-RING
(10370)



Return
