AA4VG90HDXD1/32L-NXFXXF001D-S (R902064259)

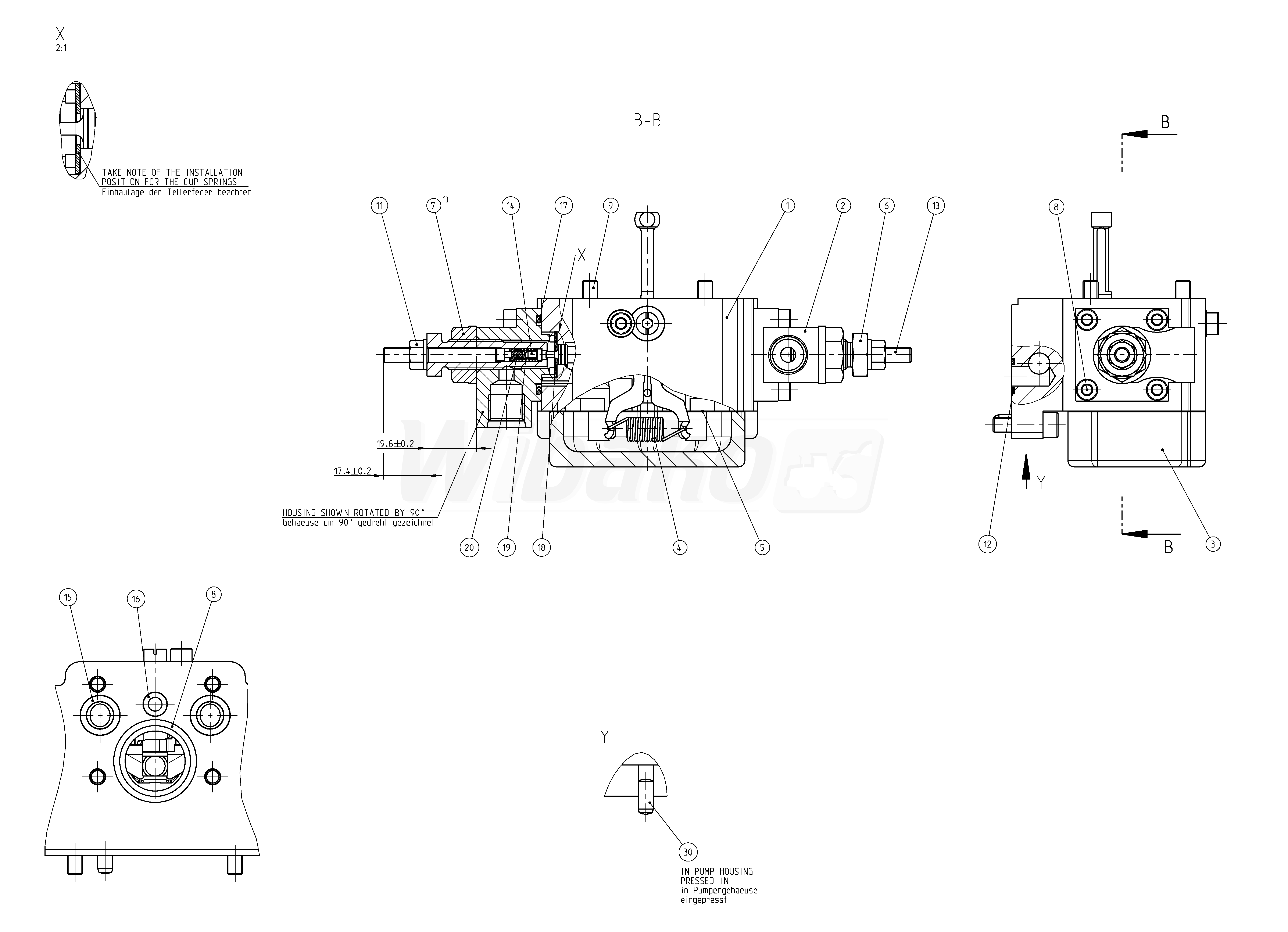

CONTROL MODULE (64621)

CONTROL MODULE
(64621)


1

BASIC UNIT
(64622)

Group »


2

HOUSING
(23316)


3

COVER
(13413)


4

EXTENSION SPRING
(51307)


5

SEAL
(13412)


6

ADJUSTING SCREW
(23318)


7

SEALING NUT
(10399)


8

SOCKET HEAD CAP SCREW
(23319)


9

SOCKET HEAD CAP SCREW
(12219)


10

O-RING
(10508)


11

SEALING NUT
(10369)


12

O-RING
(15512)


13

SETSCREW
(23320)


14

SPRING DISK
(23321)


15

O-RING
(10450)


16

O-RING
(10370)


17

O-RING
(11843)


18

DISC SPRING
(26825)


19

COMPRESSION SPRING
(23322)


20

SPRING DISK
(23323)


30

STRAIGHT PIN
(12694)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
