AA4VG90HDXD1/32L-NXFXXF001D-S (R902064259)

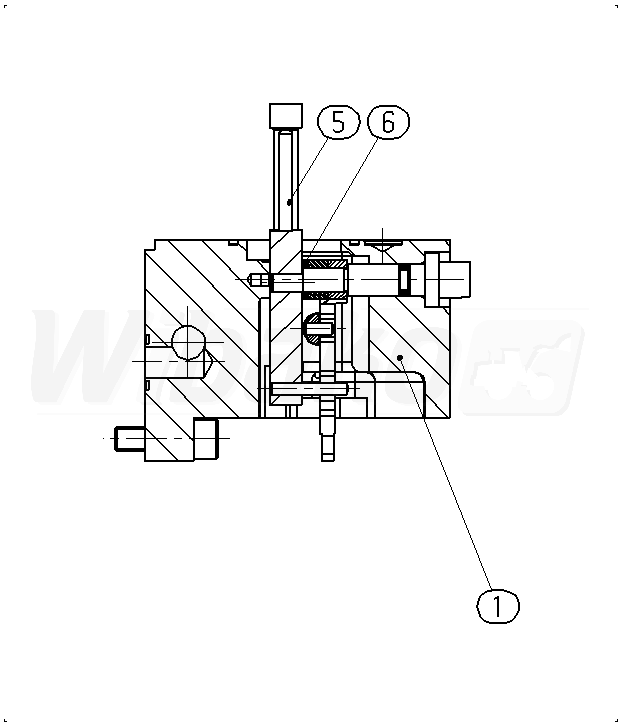

BASIC UNIT (64622)

BASIC UNIT
(64622)


1

CONTROL HOUSING
(51013)

Group »


5

FEEDBACK LEVER
(19261)


6

WASHER
(13416)


6

WASHER
(13417)


6

WASHER
(13418)


6

WASHER
(13419)


6

WASHER
(13420)


6

WASHER
(13421)


6

WASHER
(13422)


6

WASHER
(13423)


6

WASHER
(13424)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
