AA4VG90HDDT2/32L-NUF52F001D-S (R909607857)

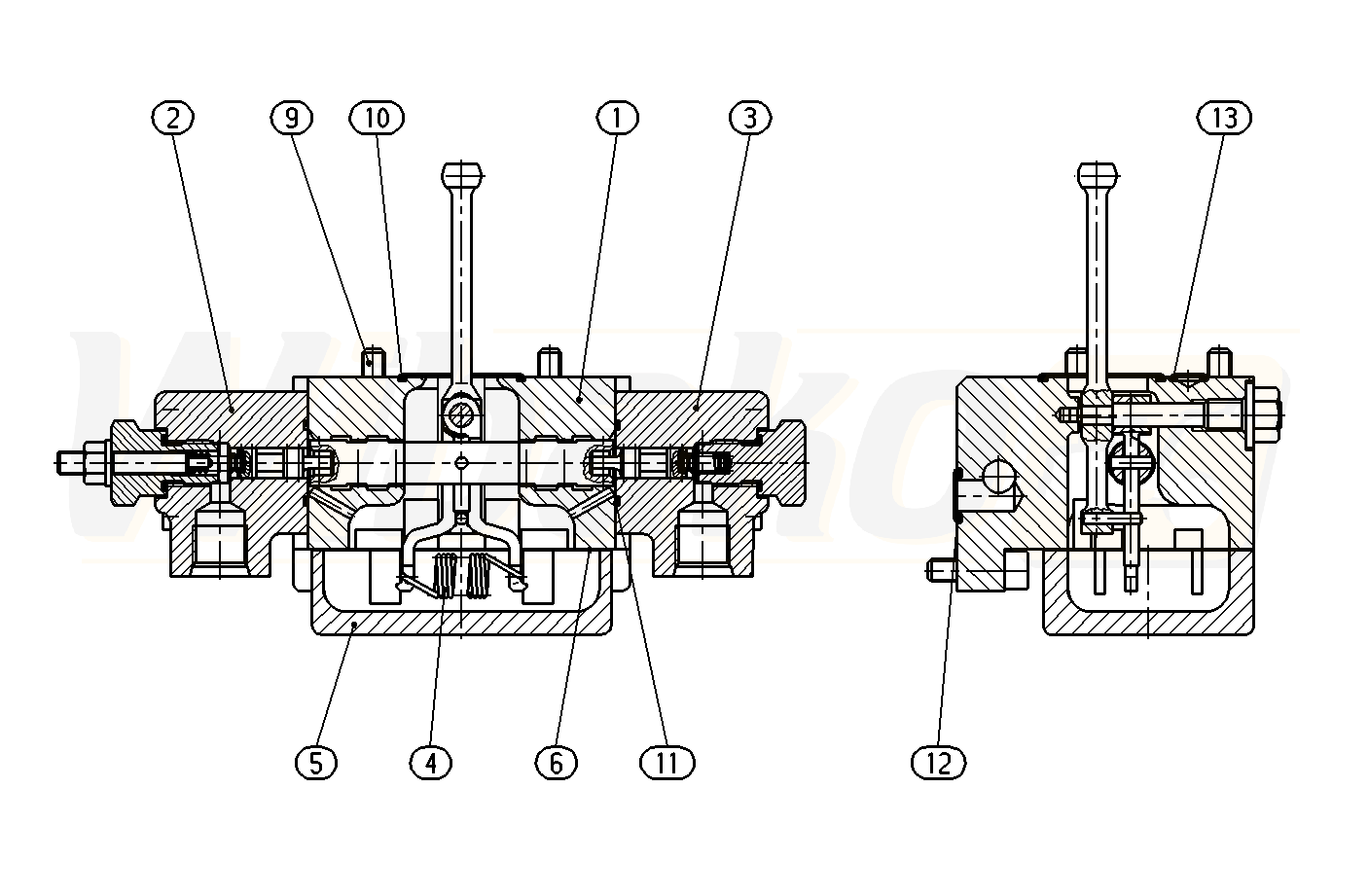

CONTROL UNIT (64459)

CONTROL UNIT
(64459)


1

CONTROL MODULE
(21556)

Group »


2

CONTROL MODULE ASSEMBLY
(30479)

Group »


3

CONTROL MODULE ASSEMBLY
(30480)

Group »


4

EXTENSION SPRING
(20360)


5

COVER
(13413)


6

SEAL
(13412)


9

SOCKET HEAD CAP SCREW
(12219)


10

O-RING
(10508)


11

O-RING
(12696)


12

O-RING
(10512)


13

O-RING
(10370)


98

SEAL KIT
(11169)
