A8VO107LR3H1/60R1-SO (R909428368)

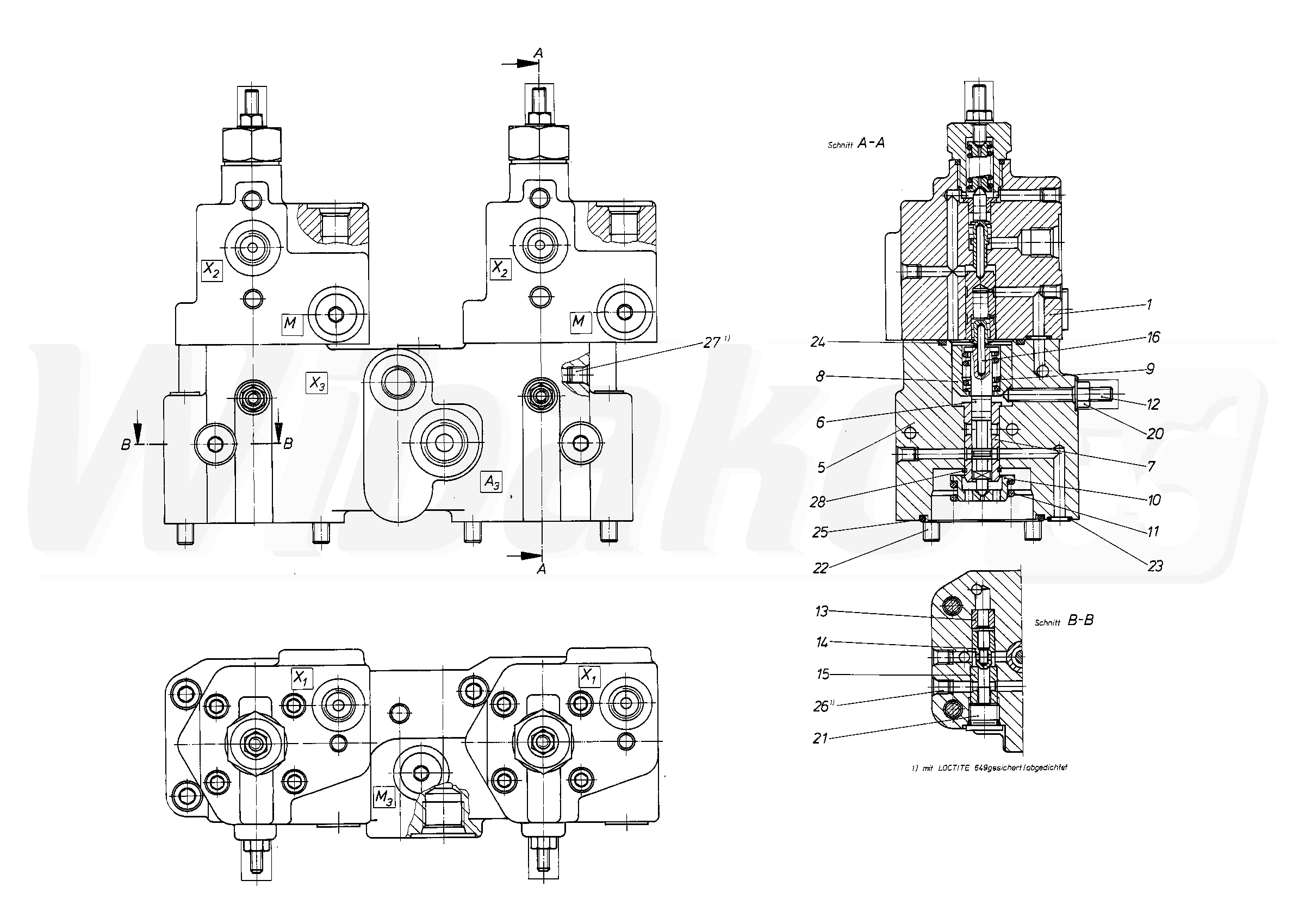

CONTROL UNIT (79831)

CONTROL UNIT
(79831)


1

CONTROL UNIT
(79834)

Group »


5

CONTROL HOUSING
(79835)


6

CONTROL PISTON
(79836)


7

CONTROL SLEEVE
(79837)


8

SPRING BUSH
(11604)


9

COMPRESSION SPRING
(11605)


10

SPRING DISK
(12173)


11

COMPRESSION SPRING
(79838)


12

SETSCREW
(79839)


13

BUSHING
(11569)


14

VALVE SPOOL
(79840)


15

BUSHING
(79841)


16

PIN
(11085)


20

SEALING NUT
(10369)


21

SCREW PLUG
(11370)


22

SOCKET HEAD CAP SCREW
(12465)


23

O-RING
(11087)


24

O-RING
(11969)


25

O-RING
(11186)


26

DOUBLE BREAK-OFF PLUG
(18990)


27

DOUBLE BREAK-OFF PLUG
(19009)


28

SNAP RING
(17352)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
