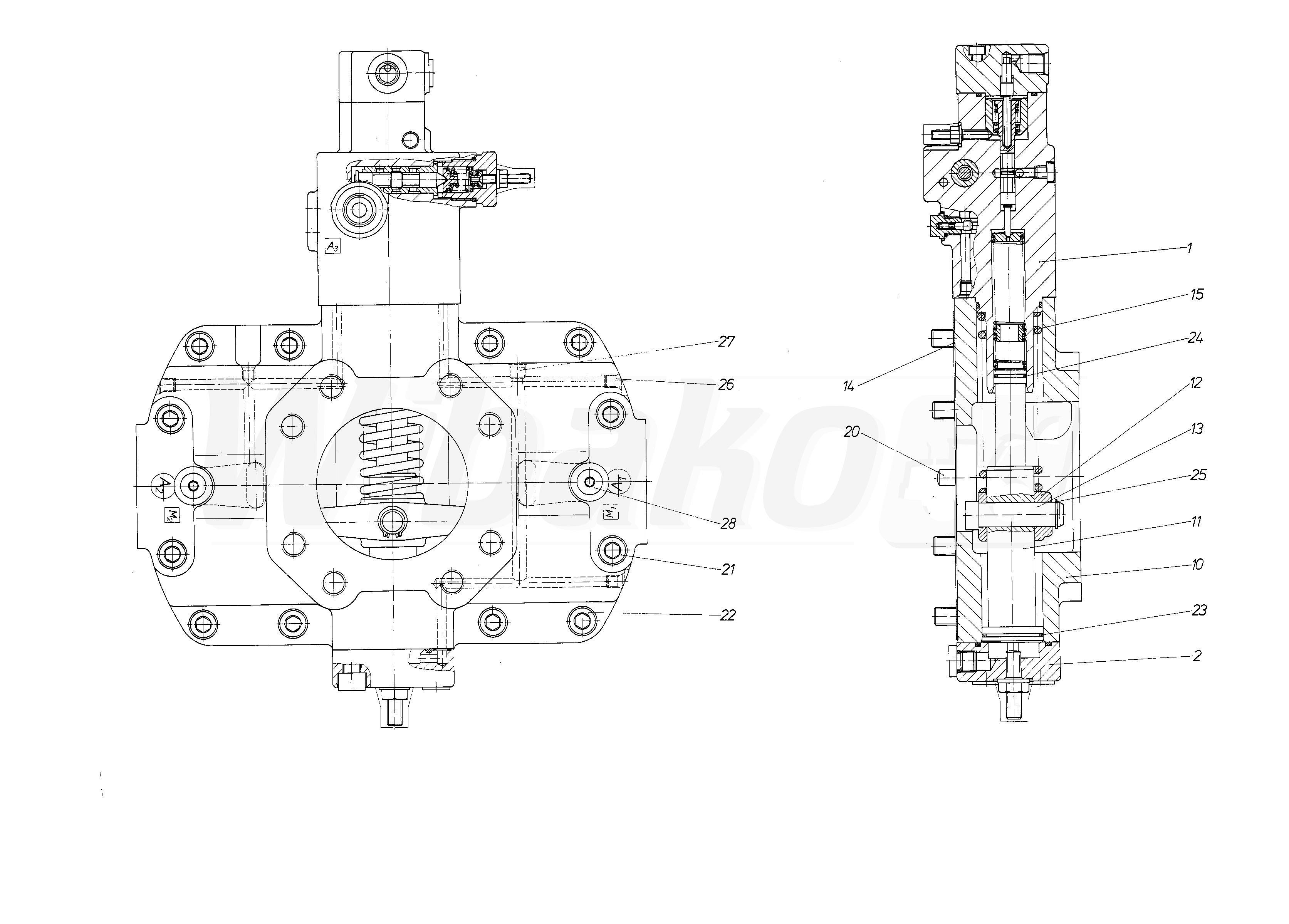

A8VO107LR3S/60R1-SO*G* (R909428894)
CONTROL (79852)

CONTROL
(79852)


1

CONTROL MODULE
(79857)

Group »


2

COVER
(79858)

Group »


10

CONTROL HOUSING
(79859)


11

POSITIONING PISTON
(79860)


12

SWIVEL FORK
(12739)


13

CENTERING BOLT
(79861)


14

SEAL
(12159)


15

COMPRESSION SPRING
(12743)


20

STRAIGHT PIN
(10338)


21

SOCKET HEAD CAP SCREW
(11955)


22

SOCKET HEAD CAP SCREW
(10164)


23

R-RING
(11211)


24

STEEL SEALING RING
(12744)


25

RETAINING RING
(79862)


26

DOUBLE BREAK-OFF PLUG
(19009)


27

DOUBLE BREAK-OFF PLUG
(19010)


28

SCREW PLUG
(11370)



Return
