AA4VG56ES5DM1/32L-NSC52N003EM-ES (R902092682)

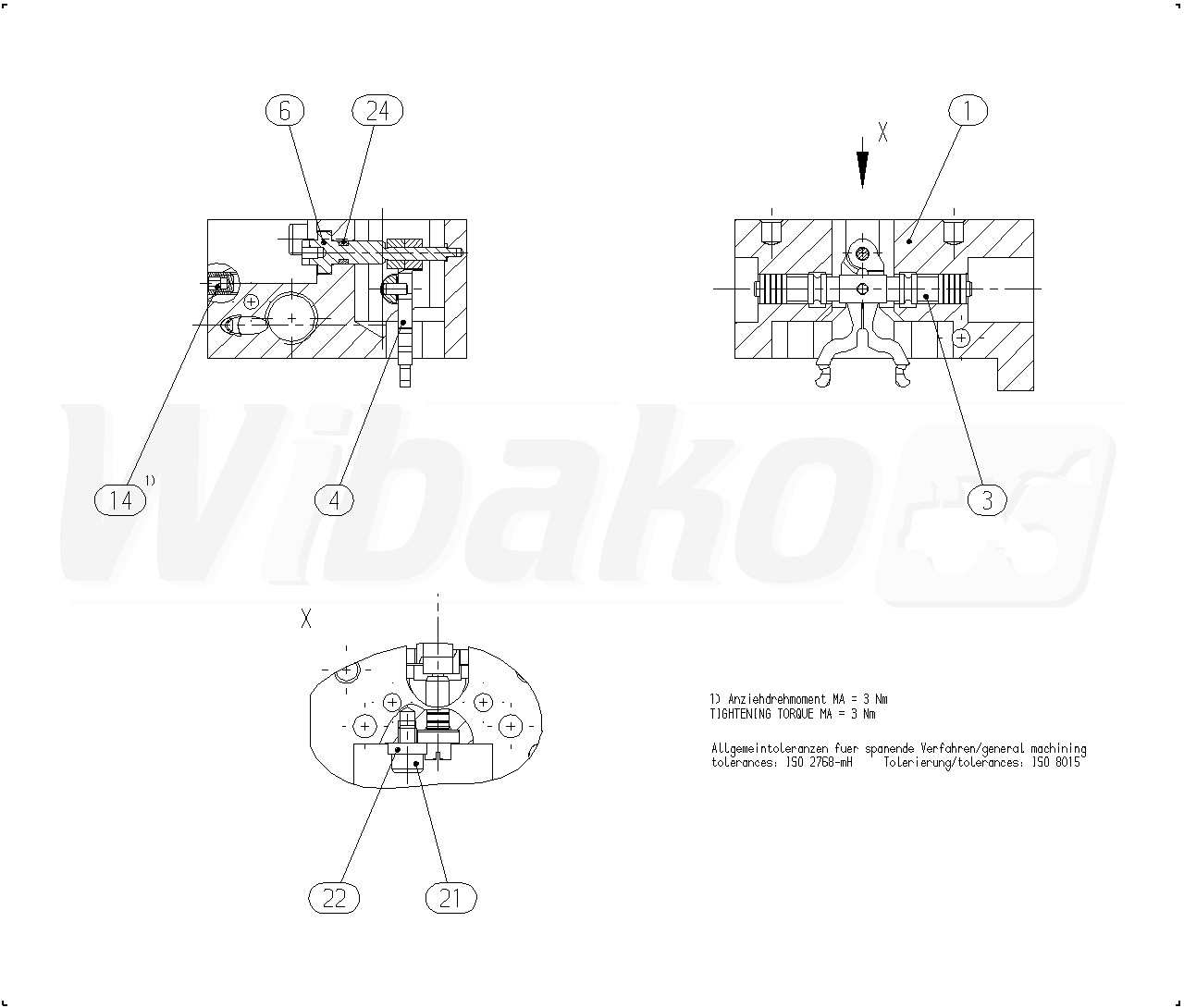

CONTROL HOUSING (25952)

CONTROL HOUSING
(25952)


1

HOUSING
(25965)


3

CONTROL PISTON
(25966)


4

LEVER PAIR
(13810)


6

ECCENTRIC PIN
(13811)


14

PLUG
(11172)


21

SOCKET HEAD CAP SCREW
(13425)


22

WASHER
(13410)


24

O-RING
(10513)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
