A A10V O 28 DRG /31L-PSC62N00 -S1184 (R902410540)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 28 cm3. Pressure controller with pressure cut-of, hydraulic, remote controlledDrive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518 Working ports UNF. Fastening thread UNF; lateral top bottom, for through drive. Without through drive.

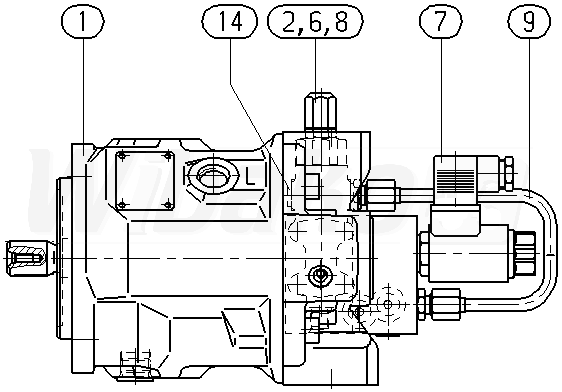

The above diagrams belong to Rexroth www.boschrexroth.com
