A A10V O 28 DRG /31L-PSC62N00 -S1184 (R902410540)

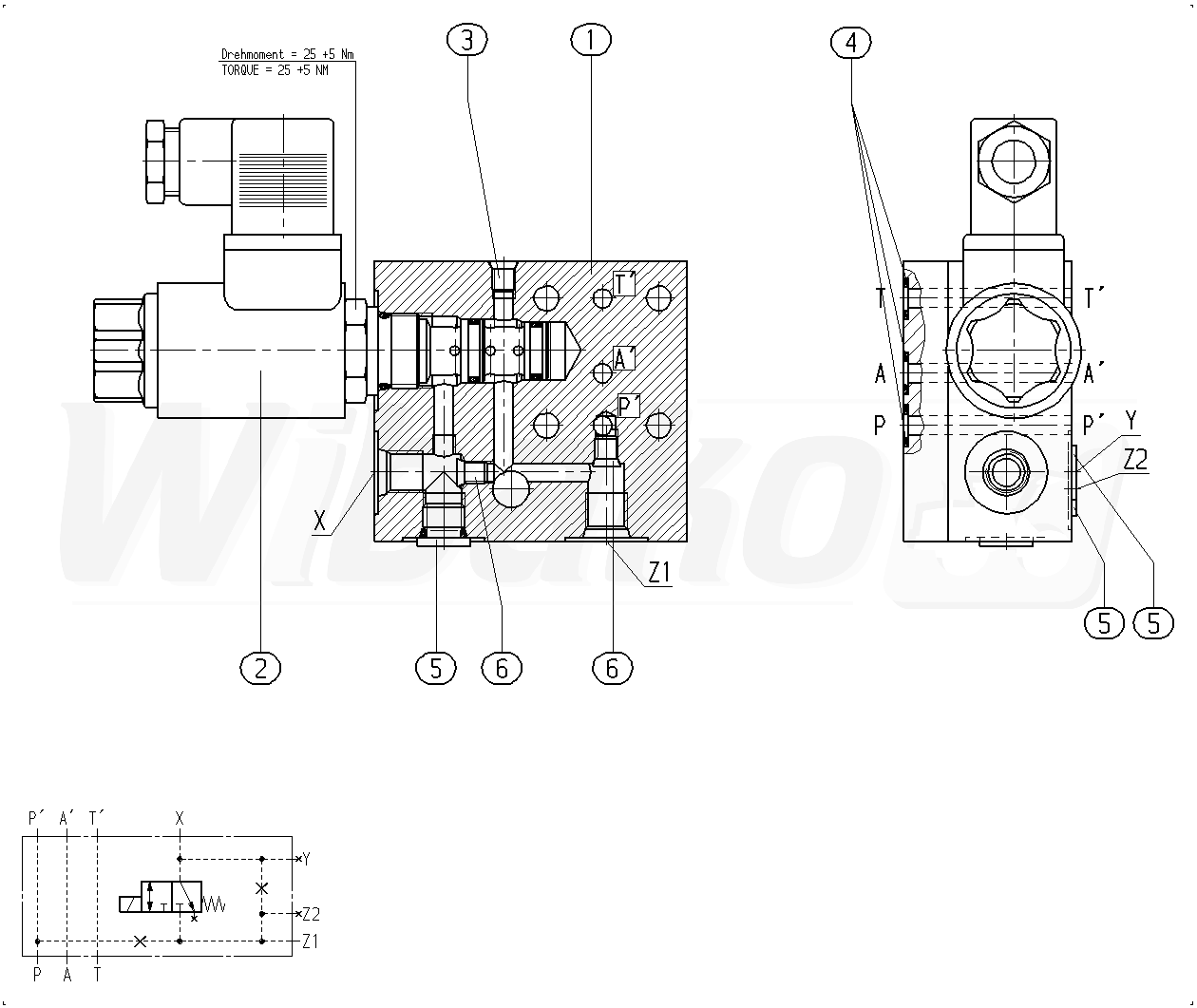

VALVE PLATE (108268)

VALVE PLATE
(108268)


1

VALVE PLATE
(20137)


2

VALVE
(108271)

Group »


3

DOUBLE BREAK-OFF PLUG
(18990)


4

O-RING
(18405)


5

SCREW PLUG
(11928)


6

BREAK-OFF PLUG
(20139)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
