AA10VO28DRG/52R-PSC12H00-S1180 (R902409716)

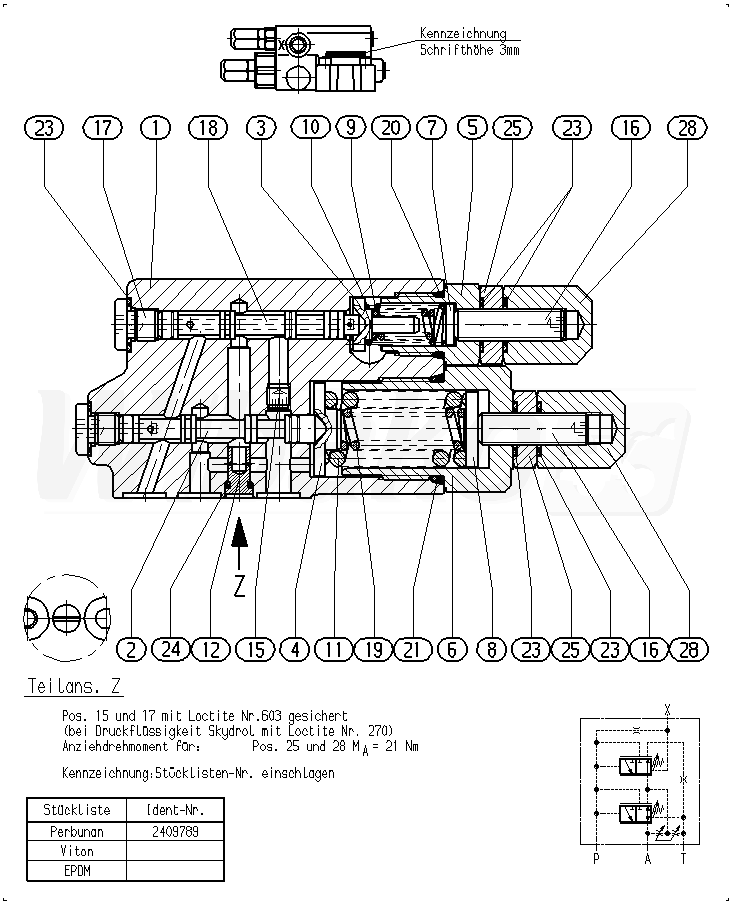

CONTROL VALVE (109114)

CONTROL VALVE
(109114)


1

VALVE HOUSING
(109115)


2

VALVE SPOOL
(13250)


3

SPRING DISK
(11910)


4

SPRING DISK
(54701)


5

SCREW PLUG
(54702)


6

SCREW PLUG
(109116)


7

WASHER
(11913)


8

WASHER
(109117)


9

COMPRESSION SPRING
(11914)


10

COMPRESSION SPRING
(11915)


11

COMPRESSION SPRING
(13249)


12

ORIFICE
(46696)


15

NOZZLE
(13923)


16

SETSCREW
(54704)


17

SCREW PLUG
(11918)


18

VALVE SPOOL
(13921)


19

COMPRESSION SPRING
(13251)


20

O-RING
(13992)


21

O-RING
(13993)


23

BONDED SEAL RING
(13991)


24

O-RING
(109118)


25

NUT
(14286)


28

CAP NUT
(14287)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
