AA10VO74DFLR/31R-VSC12N00-SO588 (R910990012)

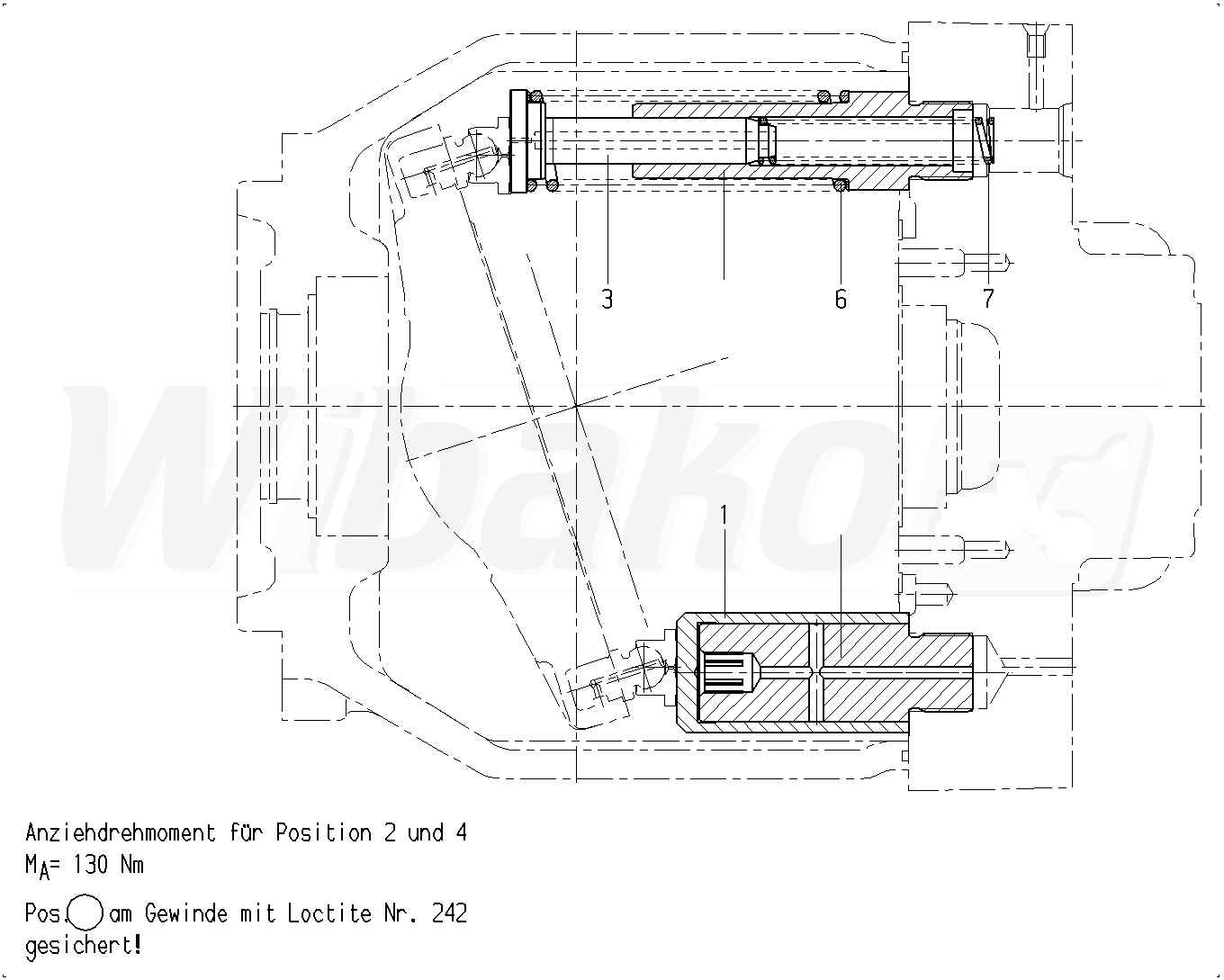

ADJUSTING PIECE (54715)

ADJUSTING PIECE
(54715)


1

ADJUSTING PISTON
(17099)


2

PISTON GUIDE
(17100)


3

OPPOSED PISTON
(54723)


4

PISTON GUIDE
(54724)


6

COMPRESSION SPRING
(13919)


7

COMPRESSION SPRING
(54725)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
