A A10VSO 71 FE1 /32R-VSD32U07 -S2881 (R902478365)

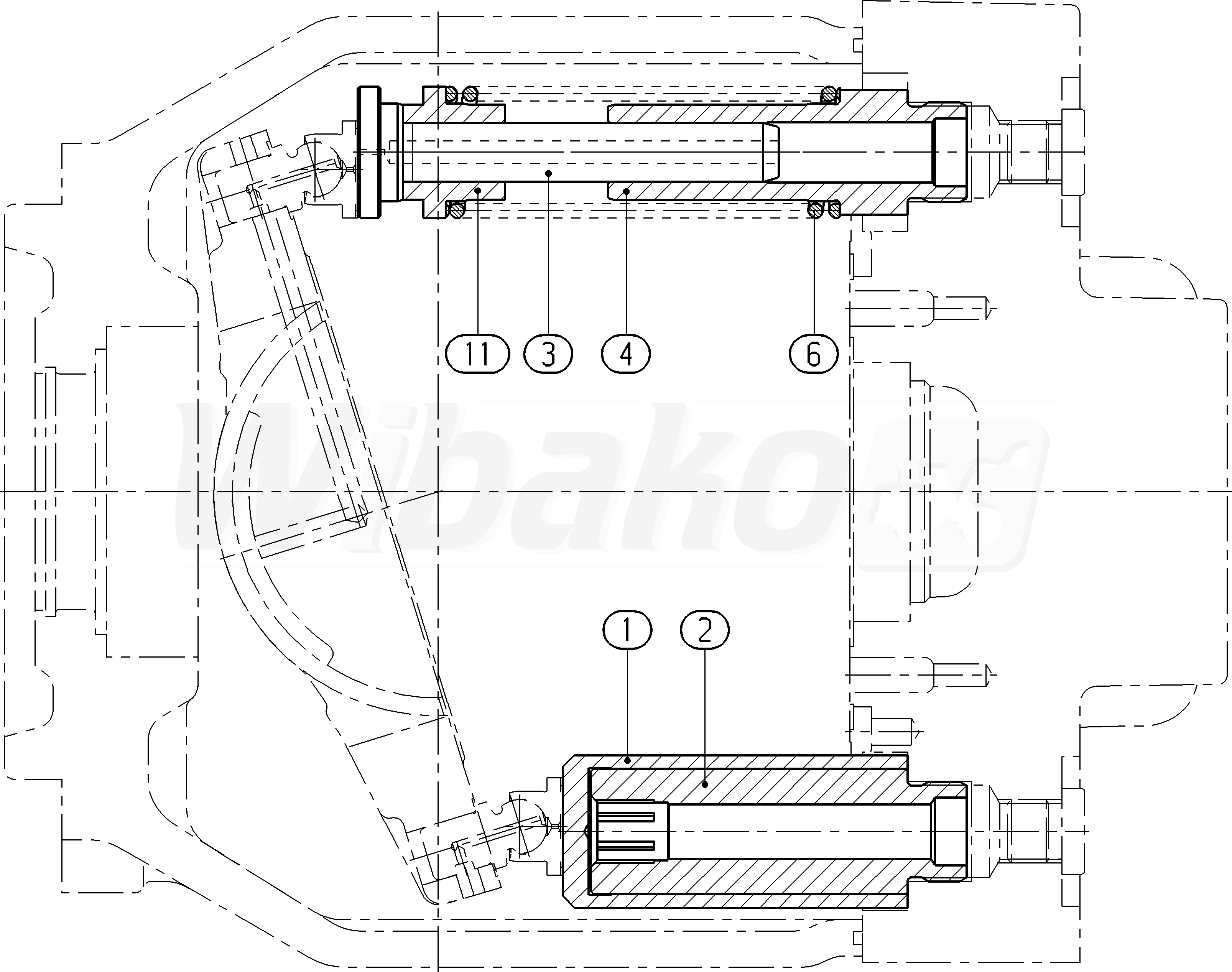

ADJUSTING PIECE (118028)

ADJUSTING PIECE
(118028)


1

ADJUSTING PISTON
(51123)


2

PISTON GUIDE
(115858)


3

OPPOSED PISTON
(13917)


4

PISTON GUIDE
(51125)


6

COMPRESSION SPRING
(51126)


11

SPRING DISK
(118025)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
