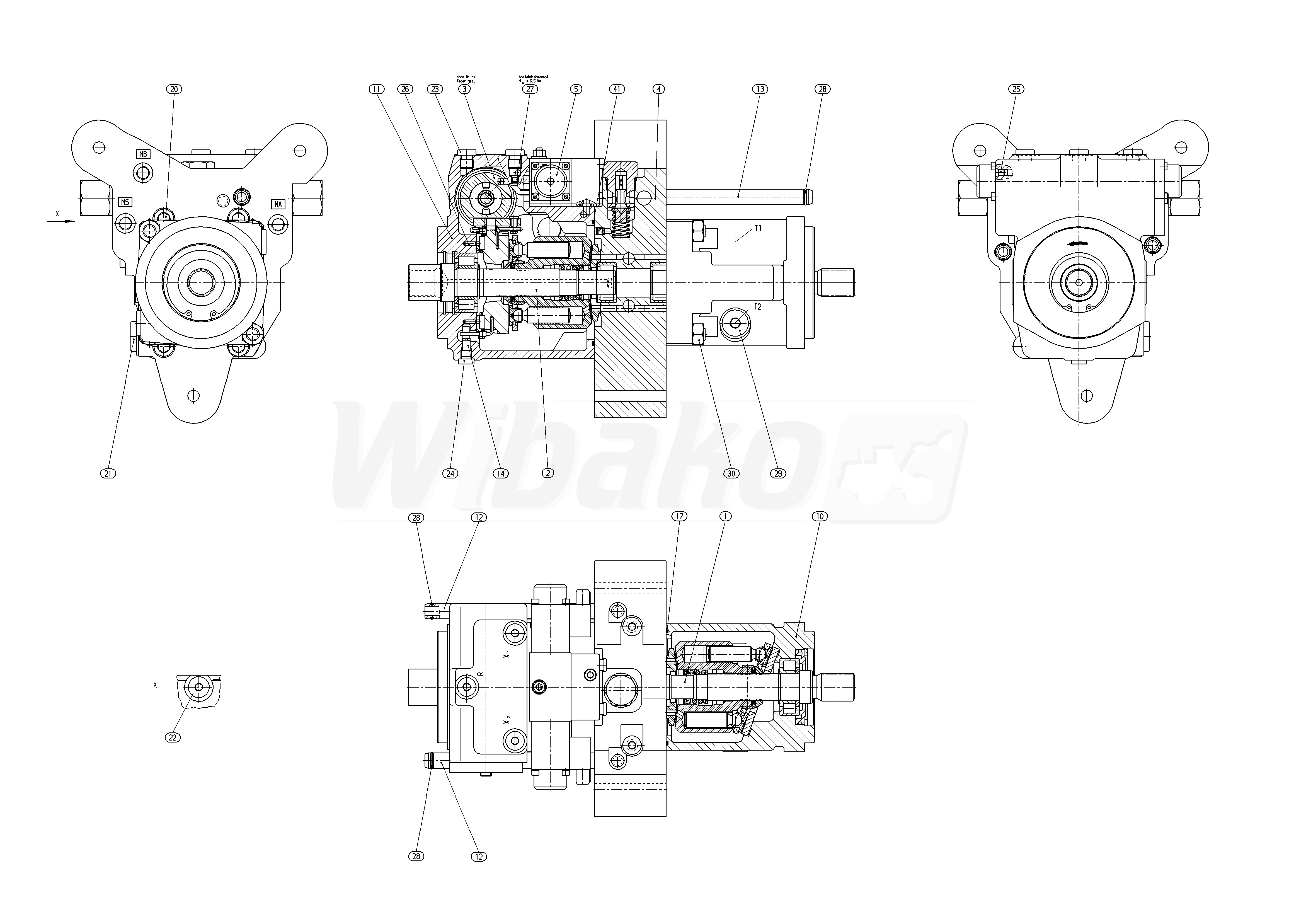

A10VG28EP1 (R909448444)

1

ROTARY GROUP
(72887)

Group »


2

ROTARY GROUP
(72890)

Group »


3

CONTROL
(72893)

Group »


4

CONNECTION PLATE
(138271)

Group »


5

CONTROL MODULE
(138272)

Group »


10

HOUSING
(72942)


11

HOUSING
(72941)


12

SOCKET PIPE
(138273)


13

SOCKET PIPE
(138274)


14

PIVOT PIN
(10393)


17

O-RING
(12674)


20

SOCKET HEAD CAP SCREW
(10337)


21

SCREW PLUG
(10397)


22

SCREW PLUG
(10015)


23

SCREW PLUG
(10190)


24

SCREW PLUG
(10220)


25

DOUBLE BREAK-OFF PLUG
(18990)


26

SLOTTED SPRING PIN
(72943)


27

NOZZLE
(10073)


28

O-RING
(10512)


29

SCREW PLUG
(10090)


30

HEXAGON NUT
(72944)


41

O-RING
(14435)
