A10VG28EP1 (R909448444)

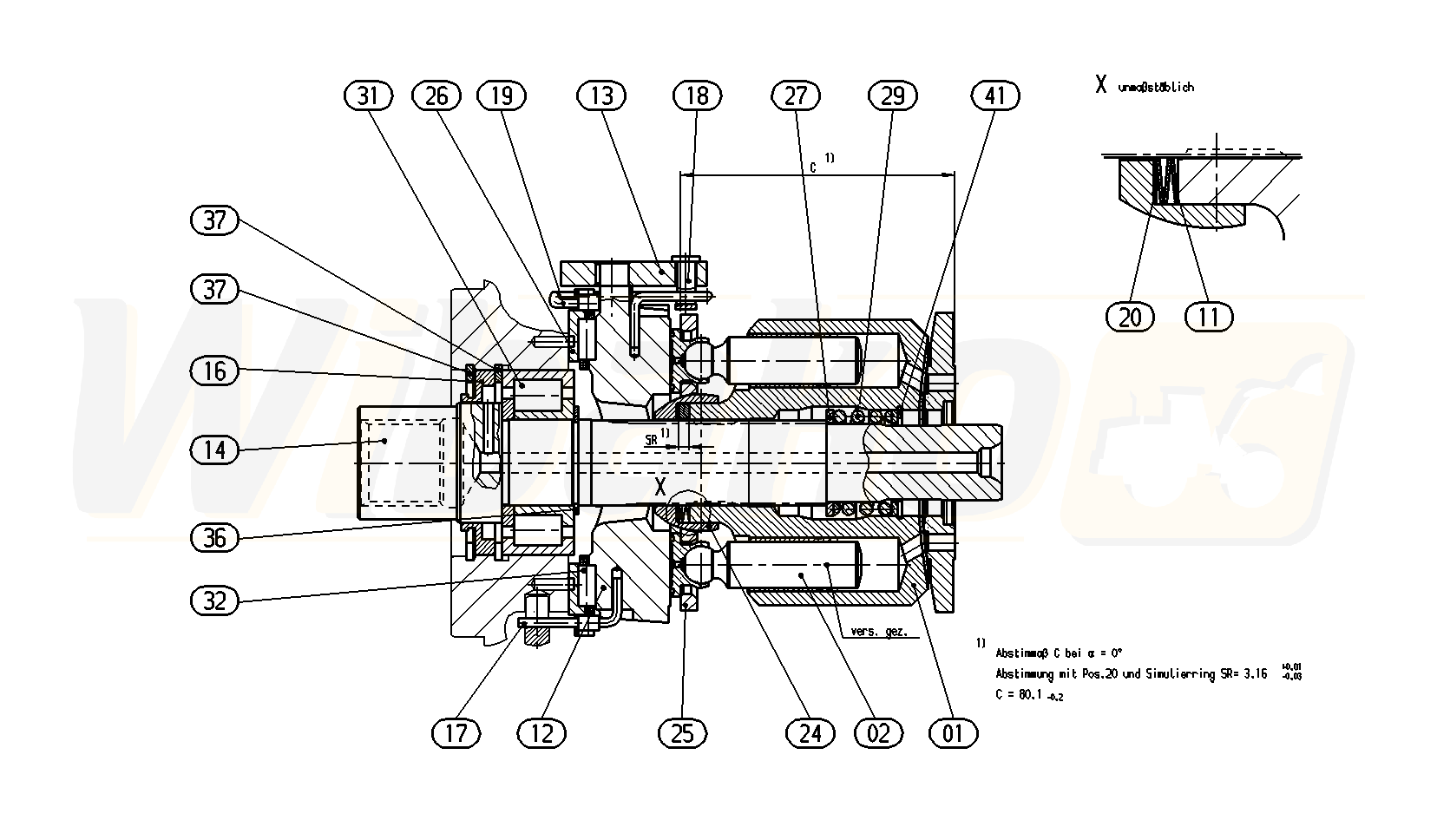

ROTARY GROUP (72890)

ROTARY GROUP
(72890)


1

CYLINDER
(72892)

Group »


2

PISTON PAD
(10167)


11

CUP-SPRING STACK
(10168)


12

CRADLE
(15698)


13

SLIDER
(15699)


14

DRIVE SHAFT
(72952)


16

LOCKING RING
(72953)


17

WIRE
(12281)


18

PIVOT PIN
(10824)


19

WIRE
(15701)


20

SHIM RING
(10171)


20

SHIM RING
(10172)


20

SHIM RING
(10173)


20

SHIM RING
(10174)


24

RETAINING BALL
(10176)


25

RETAINING PLATE
(10175)


26

BEARING SHELL PAIR
(12282)


27

WASHER
(19510)


29

COMPRESSION SPRING
(19511)


31

CYL. ROLLER BEARING
(12283)


32

CAGE PAIR
(12284)


36

RETAINING RING
(10179)


37

RETAINING RING
(21936)


41

RETAINING RING
(19512)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
