AH A10V O100EF2DC /31R-VSC13KC3P -S1903 (R902438268)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 100 cm3. Differential pressure control, electrically variable, negative characteristic curve, Δp shifting controller axis y, U = 24 V. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole.

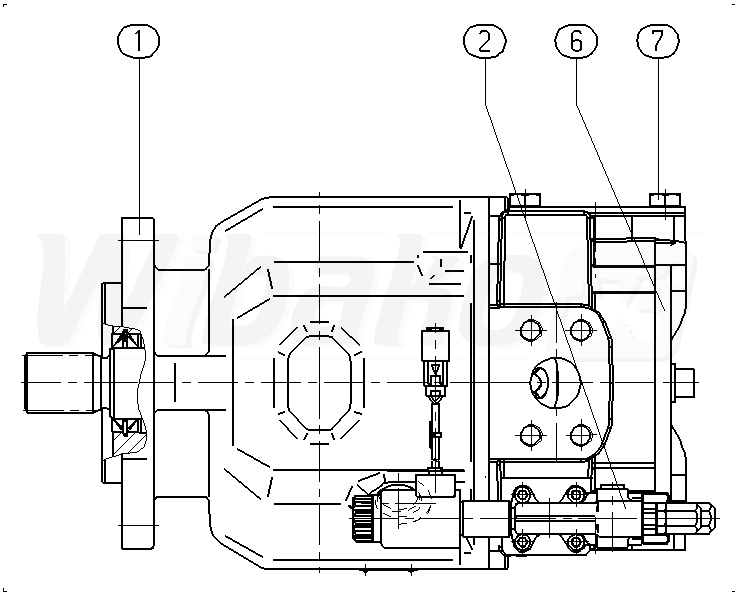

The above diagrams belong to Rexroth www.boschrexroth.com
