AH A10V O100EF2DC /31R-VSC13KC3P -S1903 (R902438268)

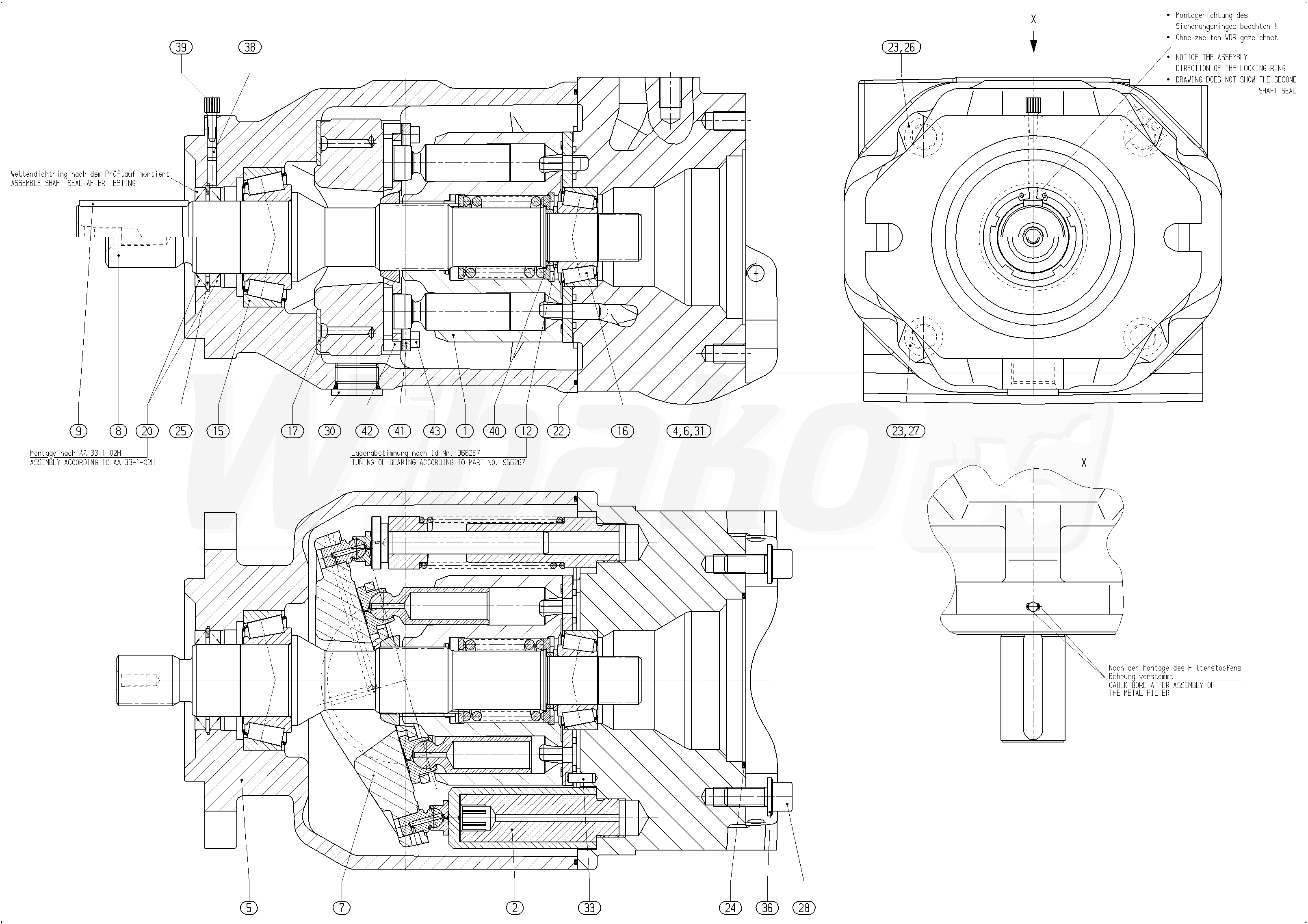

BASE UNIT (148719)

BASE UNIT
(148719)


1

ROTARY GROUP
(148542)

Group »


2

ADJUSTING PIECE
(16737)

Group »


4

CHECK VALVE
(19815)


5

PUMP HOUSING
(105146)


6

CONNECTION PLATE
(148720)


7

SWASH PLATE
(83710)


8

DRIVE SHAFT
(83676)


12

ADJUSTMENT SHIM
(15478)


15

TAPERED-ROLLER BEARING
(15479)


16

TAPERED-ROLLER BEARING
(15480)


17

BEARING SHELL
(15481)


20

SHAFT SEALING RING
(15482)


22

O-RING
(15483)


23

R-RING
(28881)


24

O-RING
(14400)


25

RETAINING RING
(11384)


26

SOCKET HEAD CAP SCREW
(14267)


27

SOCKET HEAD CAP SCREW
(148336)


30

SCREW PLUG
(13818)


31

DOUBLE BREAK-OFF PLUG
(18990)


33

STRAIGHT PIN
(11892)


38

PLUG
(17386)


39

GUARD PLUG
(17387)


41

SEGMENT
(36468)


42

SPACER SLEEVE
(36469)


43

SOCKET HEAD CAP SCREW
(30738)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
