AHA10VO140EF2LR/31R-VQC12L70-S2297 (R902456281)

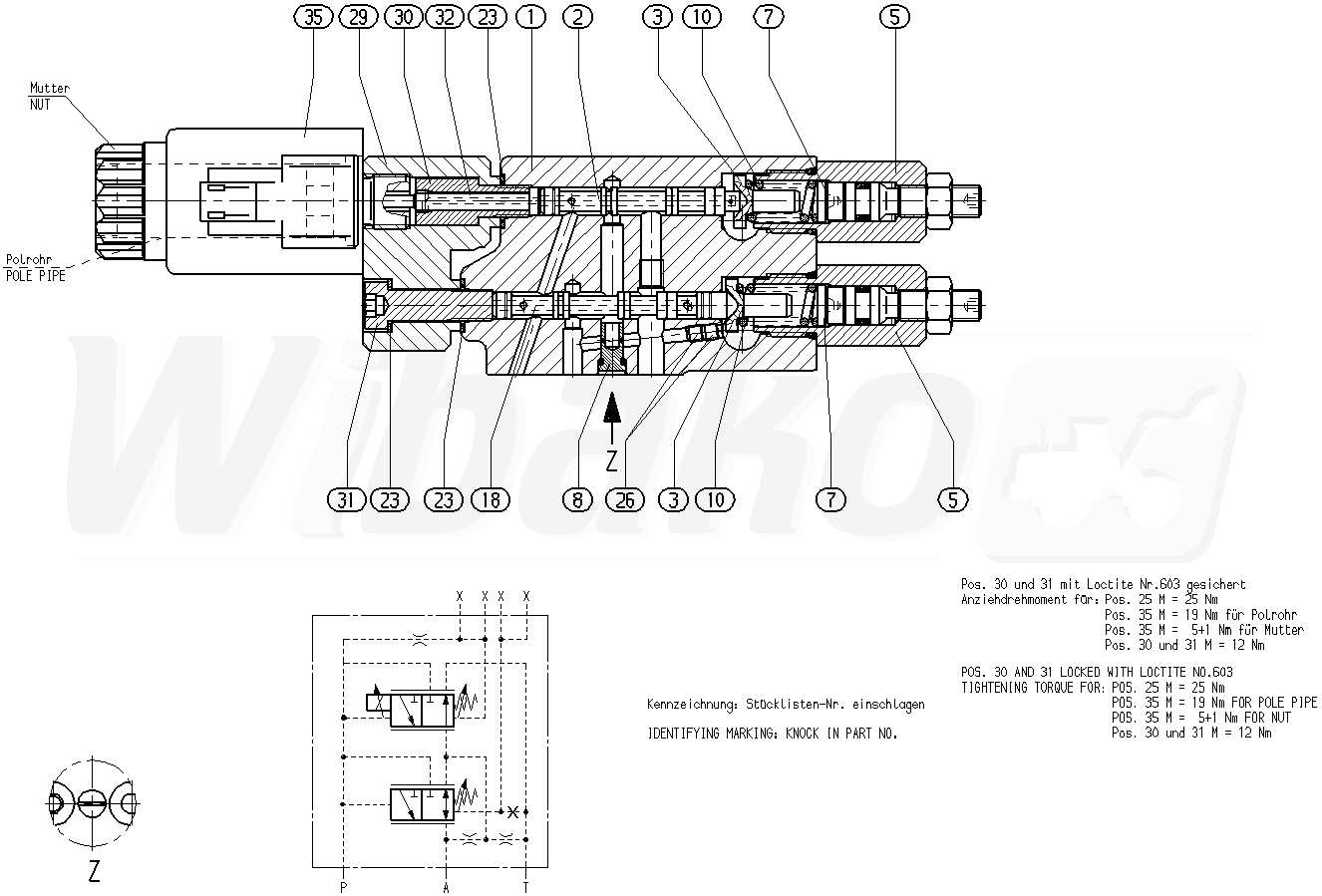

CONTROL VALVE (149173)

CONTROL VALVE
(149173)


1

VALVE HOUSING
(13920)


2

VALVE SPOOL
(13921)


3

SPRING DISK
(26831)


5

SERVO UNIT
(13247)

Group »


7

WASHER
(11913)


8

ORIFICE
(11917)

Group »


10

COMPRESSION SPRING
(13319)


18

VALVE SPOOL
(13924)


23

BONDED SEAL RING
(11921)


26

SETSCREW
(13925)


29

DOUBLE ADAPTER
(114092)


30

HOLLOW BOLT
(114093)


31

SCREW
(114094)


32

CONNECTING ROD
(124690)


35

PROPORTIONAL SOLENOID
(149174)
