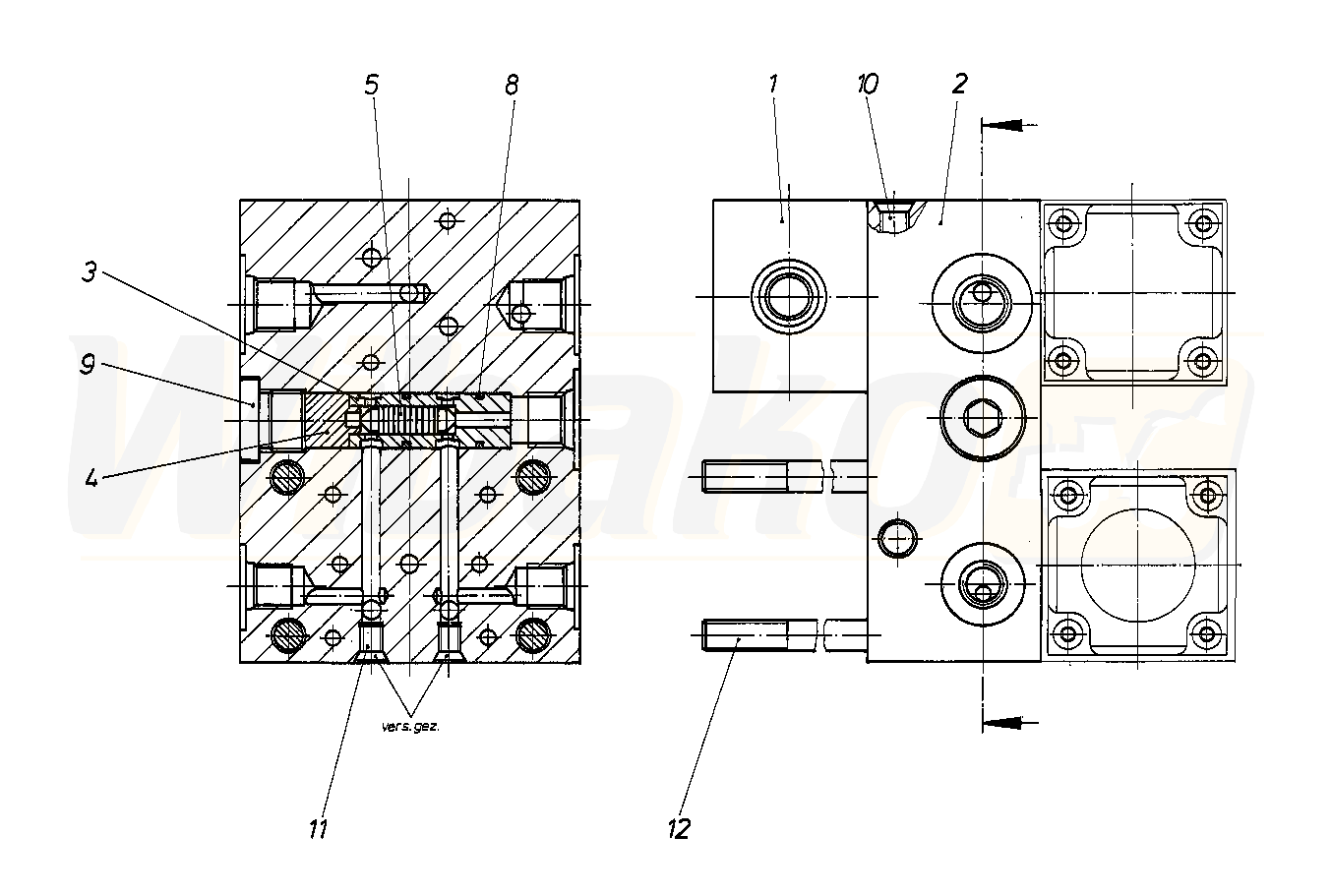

AA4VG125HD/3-424486**G* (R909424486)
CONTROL MODULE (53227)

CONTROL MODULE
(53227)


1

ROTARY ORIFICE
(53228)

Group »


2

CONNECTION PLATE
(53928)


3

VALVE BUSHING
(53929)


4

VALVE SEAT
(53930)


5

VALVE SPOOL
(24695)


8

STEEL SEALING RING
(19012)


9

SCREW PLUG
(10395)


10

DOUBLE BREAK-OFF PLUG
(19009)


11

DOUBLE BREAK-OFF PLUG
(18990)


12

SOCKET HEAD CAP SCREW
(53931)
