A4VG28EP1/X+A4FM28/X-ECCOM1,5-DFA-W (R902047640)

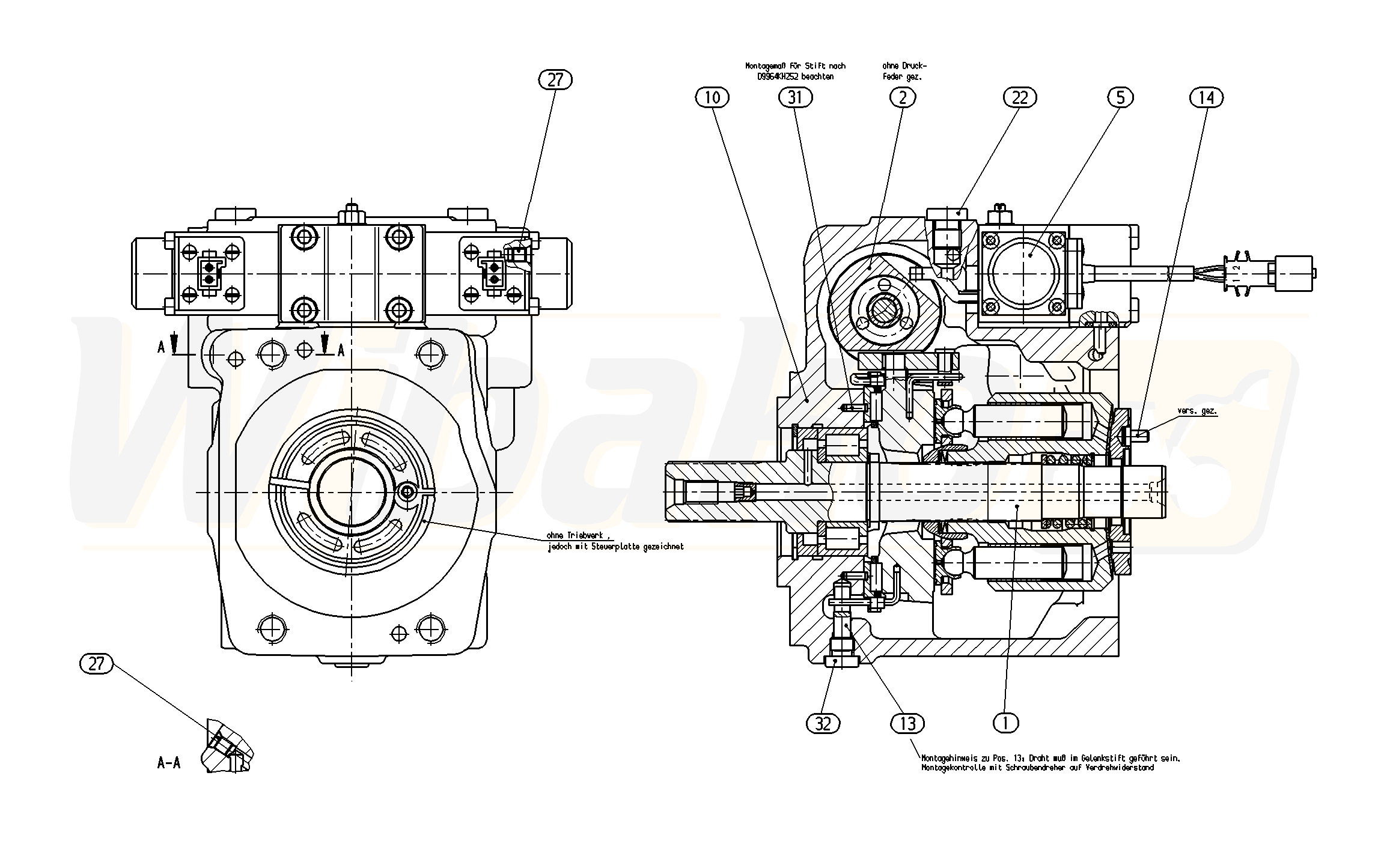

AXIAL-PISTON PUMP (73106)

AXIAL-PISTON PUMP
(73106)


1

ROTARY GROUP
(73107)

Group »


2

CONTROL
(73109)

Group »


5

CONTROL MODULE
(72910)

Group »


10

HOUSING
(73165)


13

PIVOT PIN
(10393)


14

POITIONING PIN
(10183)


22

SCREW PLUG
(35411)


27

DOUBLE BREAK-OFF PLUG
(18990)


31

SLOTTED SPRING PIN
(10396)


32

SCREW PLUG
(35208)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
