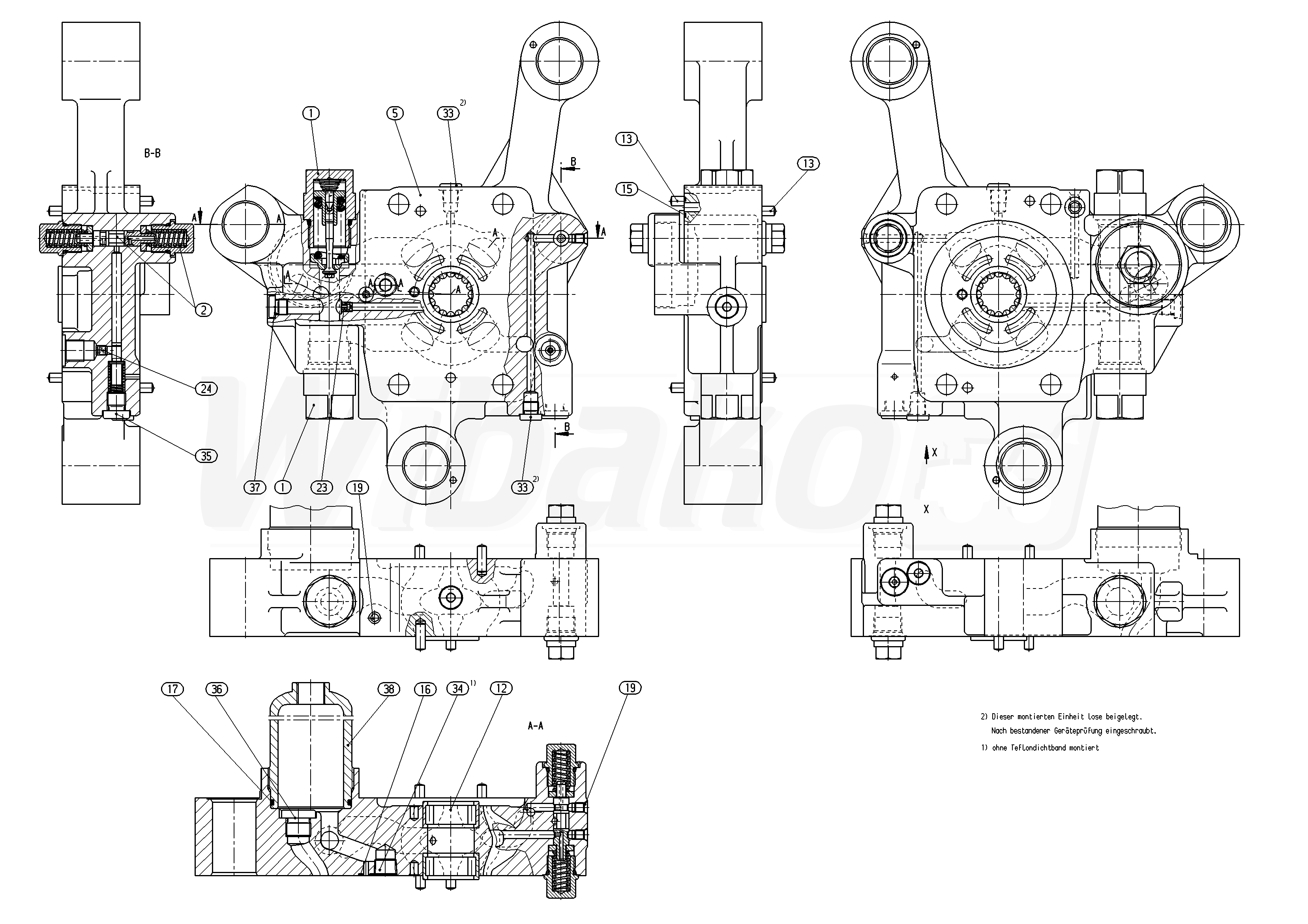

A4VG28EP1/X+A4FM28/X-ECCOM1,5-DFA-W (R902047640)
CONNECTION PLATE (73115)

CONNECTION PLATE
(73115)


1

PRESSURE RELIEF VALVE
(72934)

Group »


2

FLUSH/BOOST PRESSURE VALVE
(35264)

Group »


5

CONNECTION PLATE
(73175)


12

CYL. ROLLER BEARING
(10185)


13

STRAIGHT PIN
(11416)


15

O-RING
(10227)


16

O-RING
(10370)


17

O-RING
(28124)


19

DOUBLE BREAK-OFF PLUG
(18990)


23

NOZZLE
(10221)


24

NOZZLE
(12443)


33

SCREW PLUG
(35208)


34

SCREW PLUG
(13474)


35

SCREW PLUG
(35207)


36

SCREW PLUG
(73176)


37

SCREW PLUG
(35208)


38

FILTER HOUSING
(72979)



Return
